High-Efficiency Multiple Secondary Power Transformers
High-Efficiency Multiple Secondary Power Transformers
SKU:POW-de228f
Enhance electrical systems with our efficient Multiple Secondary Power Transformers, designed for reliability and precision in power distribution.
Regular price
$149.99
Regular price
Sale price
$149.99
Unit price
per
Initiate Order
High-Efficiency Multiple Secondary Power Transformers
$149.99
Quantity: 1
Claim Your Seller Account
High-Efficiency Multiple Secondary Power Transformers
$149.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

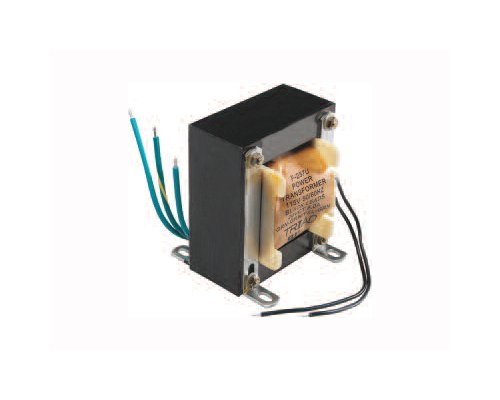

Enhance your electrical systems with our Multiple Secondary Chassis Mount Power Transformers. With a Secondary Voltage of 18.0 V and a Secondary Current of 8.000 A, these transformers are designed for efficiency and reliability. The Center Tap Transformer Contact Type ensures precise power distribution, while the durable U Case Type and secure Lugs Connections make installation a breeze. Meeting stringent industry standards, these transformers are ideal for both consumer and institutional procurement needs.
Product Specifications
Note Note
Windings may be connected in series to obtain their combined voltage when properly phased. Current will be equal to the current of the lowest winding. Example: Two 6.3 V windings @ 2 A in series would be 12.6 V @ 2 A. Windings may also be connected in parallel to obtain combined current. Example: Two 6.3 V windings @ 2 A in parallel would be 6.3 V @ 4 A.
Specifications Case Type
U
Specifications Connections
Lugs

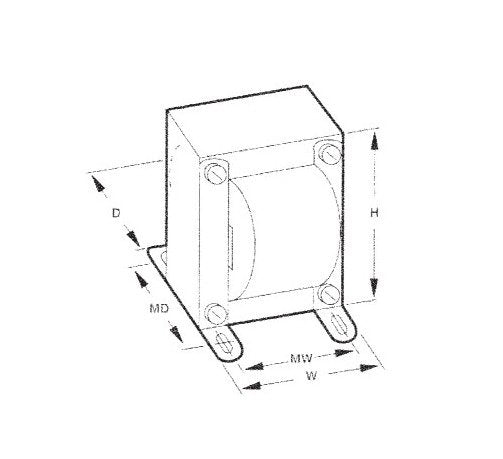

Specifications Depth D
4 in
Specifications Height H
3 3/4 in
Specifications Mounting Depth
2 3/4 in
Specifications Mounting Hole Size
13/64 x 3/8 in
Specifications Mounting Width
3 3/4 in
Specifications Primary Frequency
60 Hz
Specifications Primary Voltage
115 V
Specifications Secondary Current
8.000 A
Specifications Secondary Rms Test Voltage
1,500 V
Specifications Secondary Voltage
18.0 V
Specifications Transformer Contact Type
Center Tap
Specifications Weight
8.30 lb
Specifications Width W
4 1/2 in
