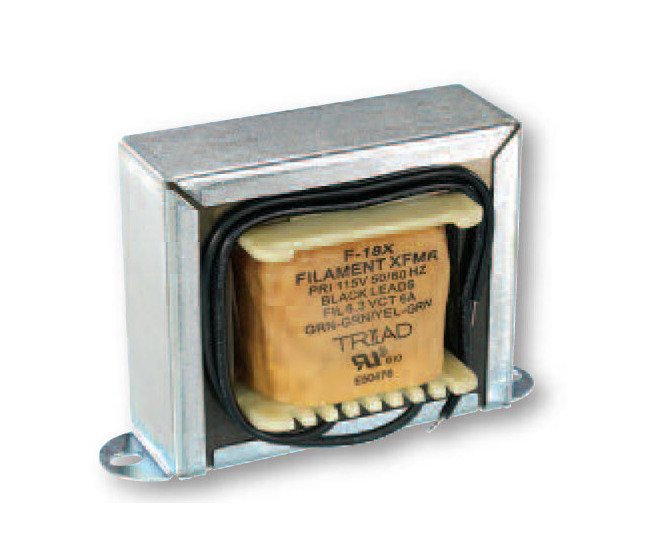

The High-Efficiency Single Secondary Chassis Mount Power Transformer from Triad is a versatile solution for power supply needs in various circuits. It offers a range of secondary voltages including control, filament, and low-level signaling. With a primary voltage of 115V and secondary voltage of 6.3V at 8.000A, this transformer is designed for efficiency and reliability. Featuring a center tap transformer contact type, standard size and weight configurations, and sturdy X case type, it ensures seamless integration and optimal performance.
Product Specifications
Specifications Case Type
X
Specifications Connections
Leads

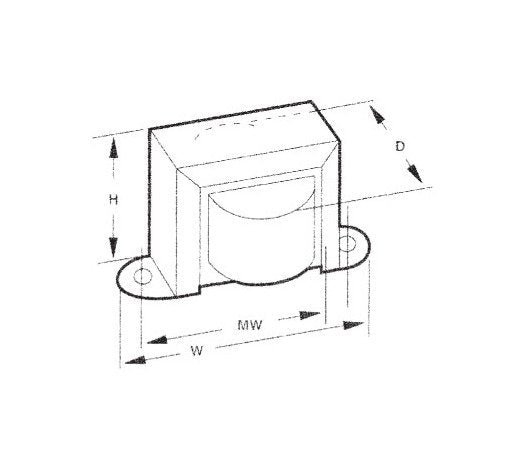

Specifications Depth D
2 1/4 in
Specifications Height H
2 9/32 in
Specifications Mounting Hole Size
3/16 in
Specifications Mounting Width
3 9/16 in
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V
Specifications Secondary Current
8.000 A
Specifications Secondary Rms Test Voltage
1,500 V
Specifications Secondary Voltage
6.3 V
Specifications Transformer Contact Type
Center Tap
Specifications Weight
2.30 lb
Specifications Width W
4 in
