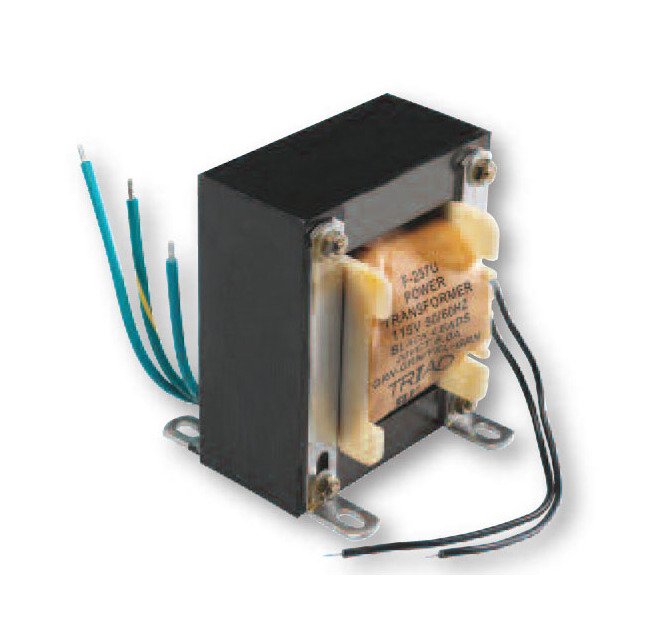

The Single Secondary Chassis Mount Power Transformers from our collection offer exceptional efficiency and reliability for a range of applications. With secondary voltages of 6.3V and 7.5V, a secondary current of 25.000A, and a primary voltage of 115V, these transformers are designed to meet the rigorous demands of transformer, rectifier, or filter circuits. Featuring a Center Tap transformer contact type, they provide precise control over control, filament, and low-level signaling needs. The transformers are equipped with a tapped primary for producing lower voltages, ensuring versatility and performance. Additionally, the transformers meet industry standards for safety and quality, making them ideal for both consumer and institutional use.
Product Specifications
Note Note
Tapped primary to produce lower voltages
Specifications Case Type
U
Specifications Connections
Leads | Lugs

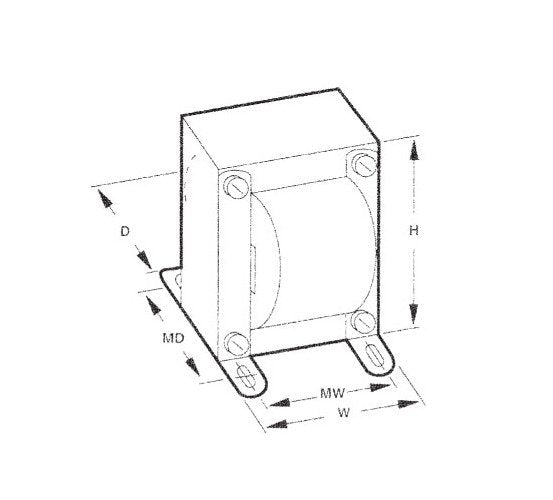

Specifications Depth D
3 5/8 in
Specifications Height H
4 5/8 in
Specifications Mounting Depth
3 1/16 in
Specifications Mounting Hole Size
13/64 x 3/8 in
Specifications Mounting Width
3 in
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V
Specifications Secondary Current
25.000 A
Specifications Secondary Rms Test Voltage
3,000 V
Specifications Secondary Voltage
6.3 V | 7.5 V
Specifications Transformer Contact Type
Center Tap
Specifications Weight
7.50 lb
Specifications Width W
3 13/16 in
