High-Efficiency Triple Output PC Mount Power Transformer
High-Efficiency Triple Output PC Mount Power Transformer
SKU:POW-92eba5
Enhance power supply designs with our high-efficiency Transformer. Ideal for PC boards and solid-state applications.
Regular price
$69.99
Regular price
Sale price
$69.99
Unit price
per
Initiate Order
High-Efficiency Triple Output PC Mount Power Transformer
$69.99
Quantity: 1
Claim Your Seller Account
High-Efficiency Triple Output PC Mount Power Transformer
$69.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Experience superior power and precision with our Primary/Triple Output Secondaries PC Mount Power Transformer. This versatile transformer is meticulously designed to meet the exacting needs of PC board and solid-state power supply applications. With single or dual primary options and dual center-tapped secondary configurations, it offers seamless integration for both power and control/instrumentation purposes. Tested at 1,500 VRMS for safety and reliability.
Ready to Grow Without Cash Flow Constraints?
Product Specifications

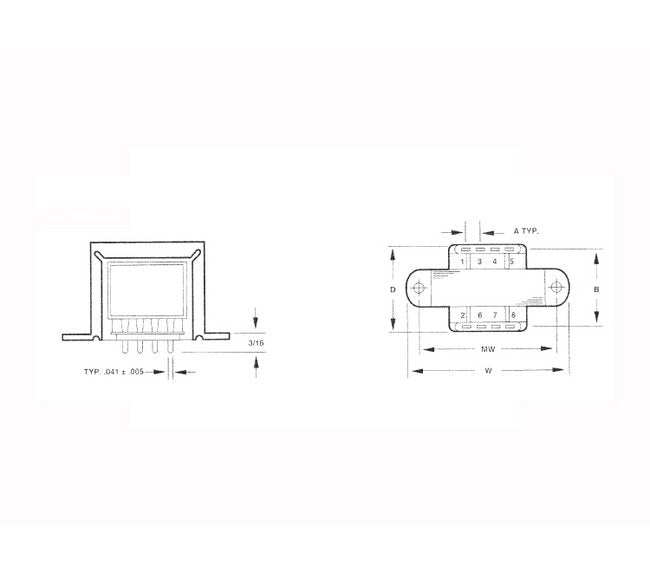

Specifications Depth D
1 15/32 in
Specifications Dimension A
1/4 in
Specifications Dimension B
1 5/16 in
Specifications Electrical Rating
7 1/2 V·A
Specifications Height H
1 5/8 in
Specifications Length L
1 61/64 in
Specifications Mounting Hole Size
3/16 in
Specifications Mounting Width
2 3/8 in
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V
Specifications Secondary Voltage In Parallel
9.0 V at 0.500 A
Specifications Secondary Voltage In Series
24.0 V CT at 0.125 A
Specifications Technical Notes
Hi-pot tested at 1,500 VRMS.
Specifications Transformer Contact Type
Center Tap
Specifications Weight
10.5 oz
Specifications Width W
2 13/16 in
