High-Fidelity 32.7 Ohm Audio Transformer - J Series
High-Fidelity 32.7 Ohm Audio Transformer - J Series
SKU:AUD-9c7a29
Experience high-fidelity audio with precision and durability. Ideal for pre-amplification and impedance matching.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
High-Fidelity 32.7 Ohm Audio Transformer - J Series
$89.99
Quantity: 1
Claim Your Seller Account
High-Fidelity 32.7 Ohm Audio Transformer - J Series
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The J Series Audio Transformer is a high-performance solution designed for demanding audio applications. Featuring Mu-Metal case construction for magnetic immunity and 60-80 dB Hum reduction, this transformer provides precise signal reproduction and exceptional noise reduction. With a low-level High Fidelity design and a wide frequency range of 30 to 15000 Hz, it is ideal for applications such as signal pre-amplification, inter-stage isolation, and impedance matching. Its direct current resistance values of 32.7 Ohm (Primary) and 3450 Ohm (Secondary) ensure efficient signal transmission and superior performance.
Product Specifications
Applications Applications
Line or Mike to Grid
Direct Current Dc Resistance Dc Resistance Primary
32.7 Ohm
Direct Current Dc Resistance Dc Resistance Secondary
3450 Ohm
Electrical Specifications At 25 Degree Celsius C Temperature Max
1 mW
Electrical Specifications At 25 Degree Celsius C Temperature Ove
1:12

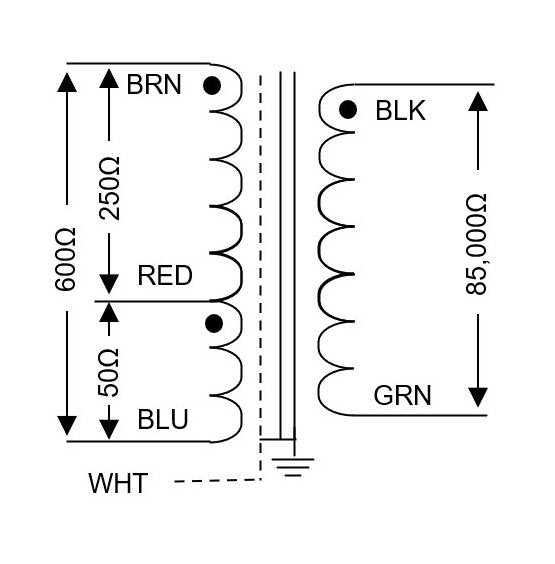

Electrical Specifications At 25 Degree Celsius C Temperature Pri
50 Ohm | 250 Ohm | 600 Ohm
Electrical Specifications At 25 Degree Celsius C Temperature Sec
85000 Ohm
Features Features
Low level high fidelity. Single-hole mounting, allowing rotation for maximum hum reduction. Alloy shielding gives 40 to 60 dB hum reduction. Wide frequency ranges. Flexible leads for ease of mounting. Input units electrostatically and magnetically shielded . Lightweight. Smooth, baked enamel cases, 1-3/8" diameter, 1-3/4" above chassis . Legible circuit diagrams permanently affixed to every case.
Note Note
Static Shield

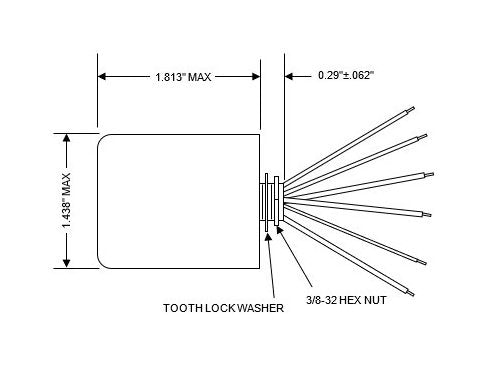

Specifications Case Dimension D
1-3/8 in
Specifications Case Dimension H
1-3/4 in
Specifications Case Type
J
Specifications Connections
Leads
Specifications Frequency Response At 3 Db
30 to 15000
Specifications Hum Reduction
40 to 60 dB
Specifications Maximum Unit Weight
0.35 lb
Specifications Mounting Hole Diameter
3/8 in
Specifications Rms Test Voltage
500
