High-Flow Brass Check Valve - NPT Connection
High-Flow Brass Check Valve - NPT Connection
SKU:CHE-7ce5c9
Enhance fluid control with our high-flow brass check valve. Offers high reliability and low leakage with 1/4" NPT connections.
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
High-Flow Brass Check Valve - NPT Connection
$34.99
Quantity: 1
Claim Your Seller Account
High-Flow Brass Check Valve - NPT Connection
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

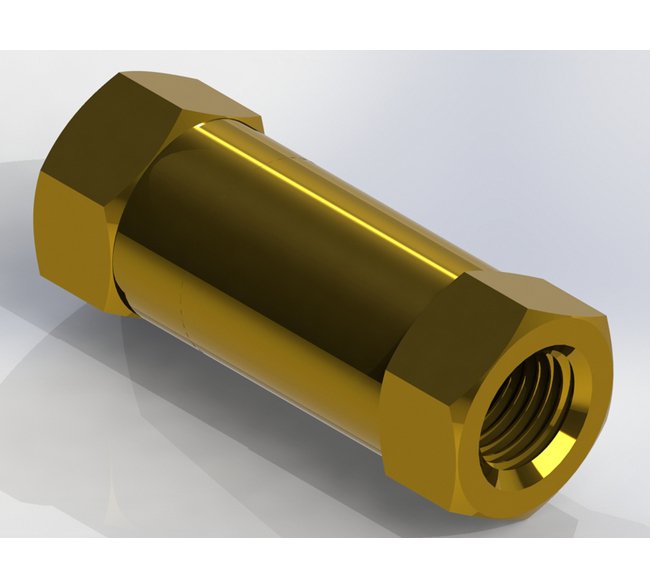

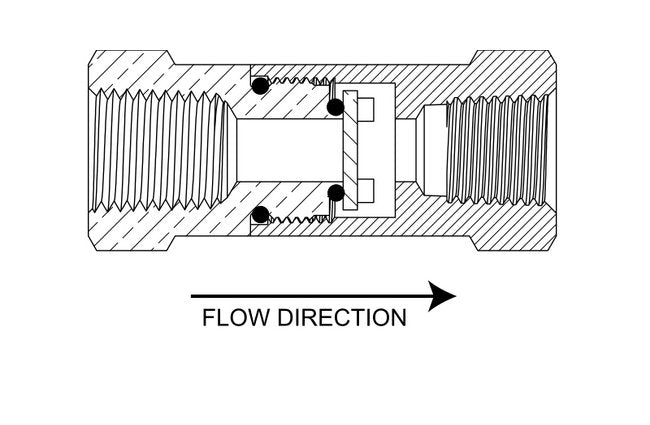

Enhance fluid control with our high-flow brass check valve, designed for reliability and efficiency. Crafted from durable brass and featuring a Viton seal, this valve maintains low cracking pressure and minimal leakage. With a maximum operating pressure of 150 psig and compatibility with temperatures up to 225°F, it ensures long-lasting performance in diverse settings. The 1/4" NPT female connections offer easy installation and robust connectivity. Enjoy high flow capacity, low pressure loss, and a compact design for seamless integration into your systems.
Product Specifications

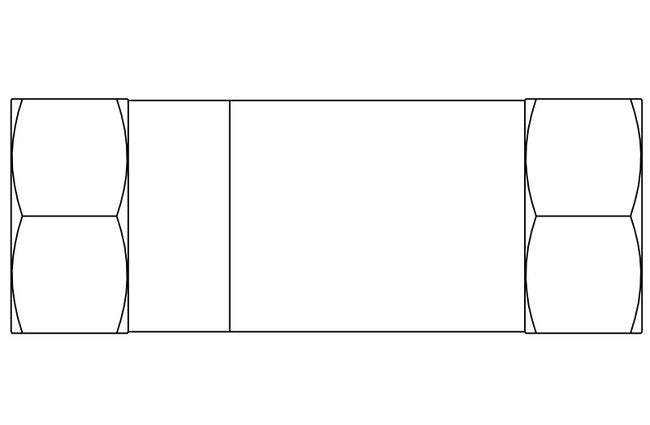

Dimensions Total Length
2.02 in
Dimensions Width Across Flats Hex
3/4 in
Features Features
High Flow Capacity Low Pressure Loss Low Cracking Pressure Long Life Operation
Specifications Body Material
Brass
Specifications Connection A
1/4" NPT Female
Specifications Connection B
1/4" NPT Female
Specifications Cracking Pressure
0.25 psig
Specifications Cv
0.61
Specifications Disk Material
Brass
Specifications Maximum Operating Pressure
150 psig
Specifications Maximum Temperature
225 ºF
Specifications Seal Material
Viton
Specifications Seat Leakage
6 SCCM (max.) air flow at greater than 50 psi differential
