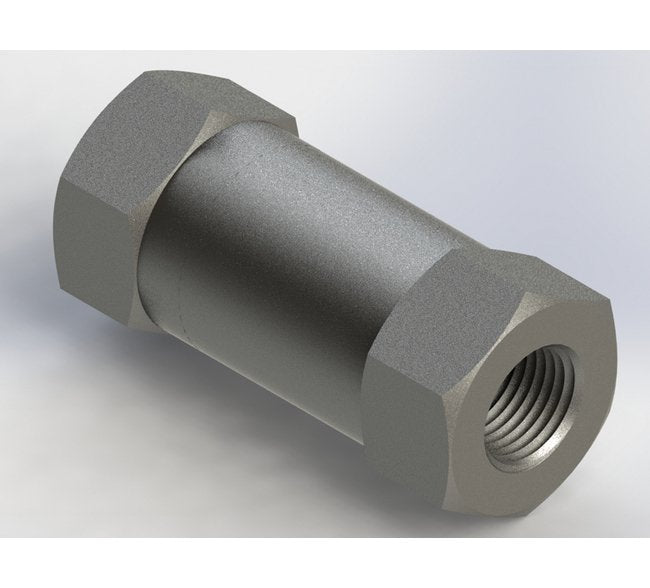

High Flow Disk Check Valves - NPT Connection, Brass & Stainless Steel
High Flow Disk Check Valves - NPT Connection, Brass & Stainless Steel
SKU:CHE-5acc67
Quality high flow disk check valves for efficient liquid or gas flow control, reliable performance meeting institutional standards.
Regular price
$45.99
Regular price
Sale price
$45.99
Unit price
per
Initiate Order
High Flow Disk Check Valves - NPT Connection, Brass & Stainless Steel
$45.99
Quantity: 1
Claim Your Seller Account
High Flow Disk Check Valves - NPT Connection, Brass & Stainless Steel
$45.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

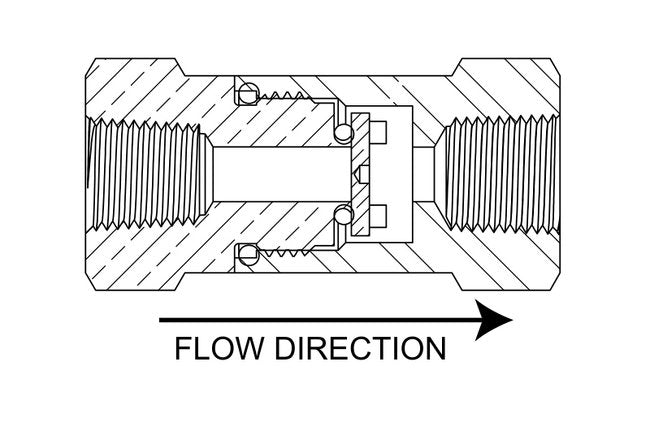

Our high flow disk check valves, available in brass and stainless steel, are designed for use with liquids or gases, offering free flow in one direction and preventing reverse flow. Constructed with quality materials like 303 SS and Viton seals, these valves have a CV of 0.43, low cracking pressure of 0.25 psig, and are suitable for up to 225°F and 150 psig. With features like high flow capacity, low pressure loss, and long life operation, these valves ensure efficient and reliable performance for various applications, meeting stringent institutional procurement standards.
Product Specifications

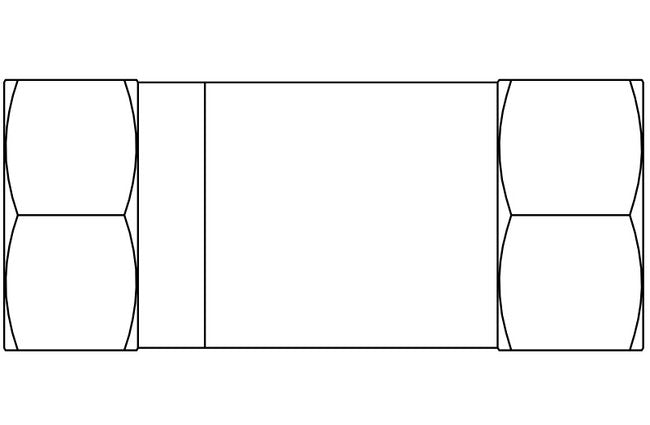

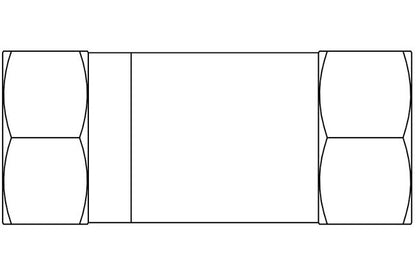

Dimensions Total Length
1.625 in
Dimensions Width Across Flats Hex
11/16 in
Features Features
High Flow Capacity Low Pressure Loss Low Cracking Pressure Long Life Operation
Specifications Body Material
303 SS
Specifications Connection A
1/8" NPT Female
Specifications Connection B
1/8" NPT Female
Specifications Cracking Pressure
0.25 psig
Specifications Cv
0.43
Specifications Disk Material
303 SS
Specifications Maximum Operating Pressure
150 psig
Specifications Maximum Temperature
225 ºF
Specifications Seal Material
Viton
Specifications Seat Leakage
6 SCCM (max.) air flow at greater than 50 psi differential
