High Flow Disk Check Valves - NPT Connection, Brass & Stainless Steel Options

Name: High Flow Disk Check Valves - NPT Connection, Brass & Stainless Steel Options
Brand: O'Keefe Controls Co.
SKU: CHE-99b245
Price: 29.99 USD
Availability: OutOfStock

SKU:CHE-99b245

High flow disk check valves with NPT connection for liquids or gases, brass & stainless steel options. Prevents reverse flow, offers high capacity & low pressure loss.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

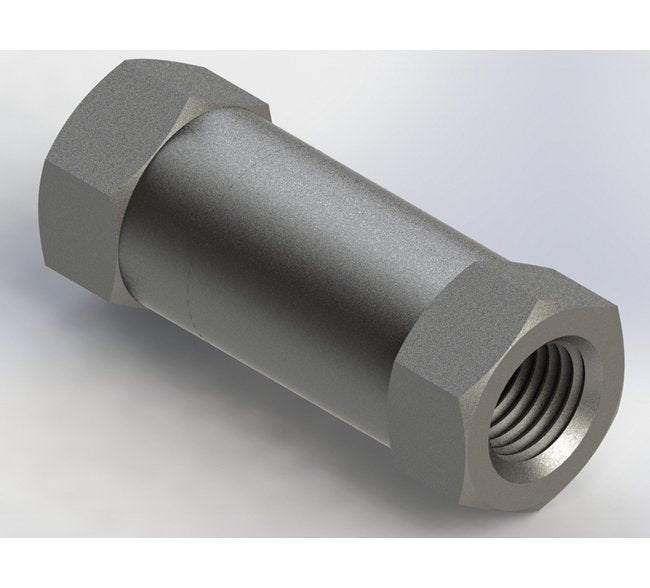

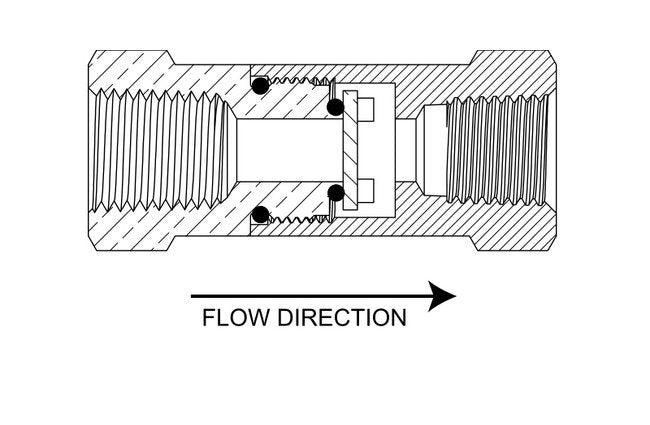

Our High Flow Disk Check Valves with NPT Connection come in both brass and stainless steel varieties, offering excellent compatibility with liquids or gases. These valves ensure free flow in one direction while preventing reverse flow. With body material 303 SS, disc material Delrin, and seal material Viton, they exhibit a CV of 0.61 and cracking pressure of 0.25 psig. Operating at temperatures up to 120°F and pressures up to 150 psig, these valves boast a 1/4" NPT Female connection on both ends. With features like high flow capacity, low pressure loss, and long operational life, these valves are ideal for a wide range of applications.

Product Specifications

Dimensions Total Length

2.02 in

Dimensions Width Across Flats Hex

3/4 in

Features Features

High Flow Capacity Low Pressure Loss Low Cracking Pressure Long Life Operation

Specifications Body Material

303 SS

Specifications Connection A

1/4" NPT Female

Specifications Connection B

1/4" NPT Female

Specifications Cracking Pressure

0.25 psig

Specifications Cv

0.61

Specifications Disk Material

Delrin

Specifications Maximum Operating Pressure

150 psig

Specifications Maximum Temperature

120 ÂºF

Specifications Seal Material

Viton

Specifications Seat Leakage

6 SCCM (max.) air flow at greater than 50 psi differential
