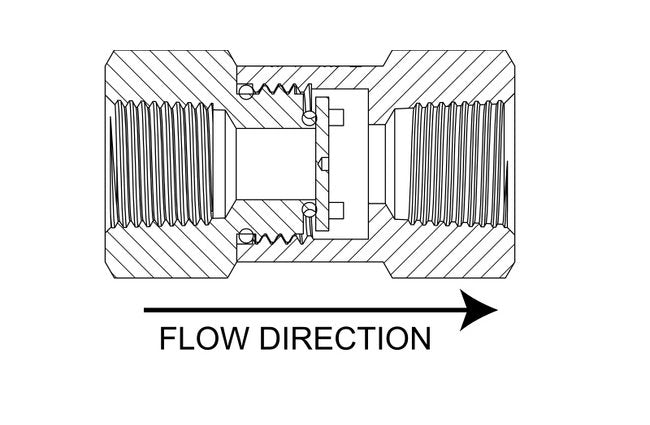

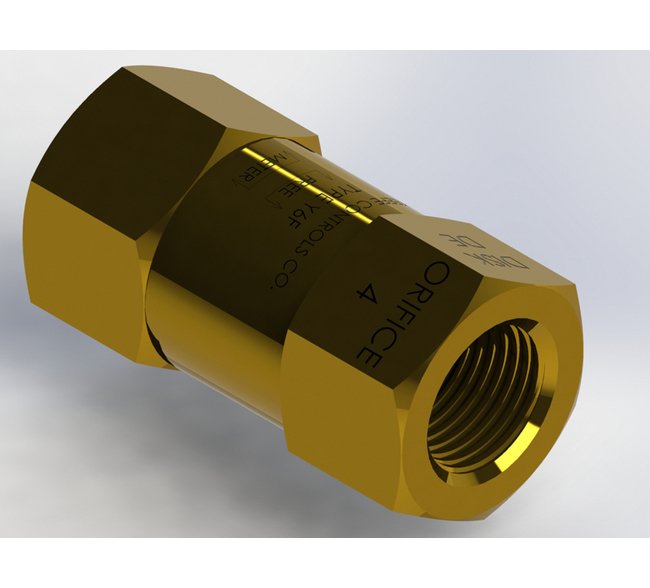

High-flow disk type check valves for precise one-way flow control. Brass/Stainless steel with low cracking pressure & Viton seals.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
High-Flow Disk Type Check Valves - Brass/Stainless Steel, NPT Connection
$49.99
Quantity: 1
Claim Your Seller Account
High-Flow Disk Type Check Valves - Brass/Stainless Steel, NPT Connection
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Experience reliable one-way flow control with our high-flow disk type check valves. Available in brass or stainless steel, these valves ensure optimal performance with liquids or gases. Featuring a low cracking pressure, high flow capacity, and Viton seals for secure operation, they are designed for long-term use up to 225°F and 150 psig. With 3/8" NPT female connections, minimal seat leakage, and sturdy construction, these valves offer efficiency and durability for industrial applications.
Product Specifications

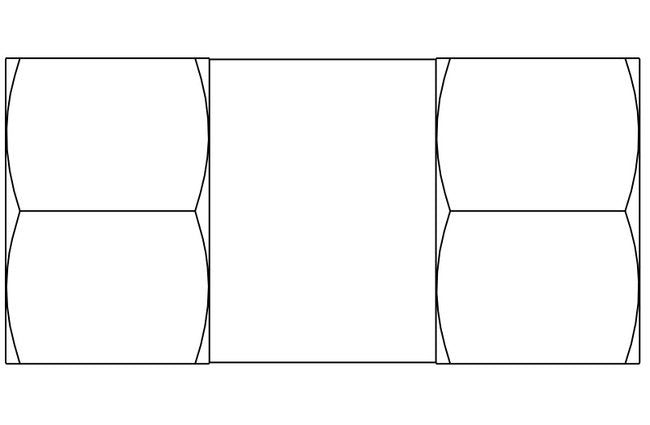

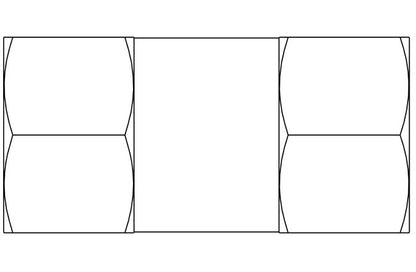

Dimensions Total Length
1.95 in
Dimensions Width Across Flats Hex
15/16 in
Features Features
High Flow Capacity Low Pressure Loss Low Cracking Pressure Long Life Operation
Specifications Body Material
Brass
Specifications Connection A
3/8" NPT Female
Specifications Connection B
3/8" NPT Female
Specifications Cracking Pressure
0.25 psig
Specifications Cv
1.09
Specifications Disk Material
Brass
Specifications Maximum Operating Pressure
150 psig
Specifications Maximum Temperature
225 ºF
Specifications Seal Material
Viton
Specifications Seat Leakage
6 SCCM (max.) air flow at greater than 50 psi differential
