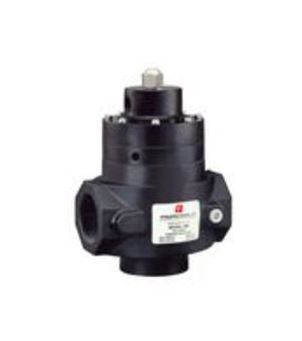

The Model 200 High Flow Pneumatic Precision Boosters are engineered to replicate low flow control signals into higher regulated flow output pressures. With fast response, stability, and accuracy, these boosters offer sensitivity and drift-free settings essential for precise applications. Featuring a wide range of pressure and flow capacities, these boosters are ideal for instrument and industrial control needs.
Product Specifications
Specifications Diameter
5-1/2 in | 140 mm
Specifications Exhaust Capacity
65 ft³/min | 110.5 m³/h
Specifications Flow Capacity
1500 ft³/min
Specifications Flow Capacity At Supply Of 100 Pounds Per Square
2550 m³/h
Specifications Height
7-7/8 in | 200 mm
Specifications Maximum Pressure Supply
250 psig | 1700 kPa
Specifications Maximum Signaloutput Pressure
150 psig | 1000 kPa
Specifications National Pipe Thread Size
1 in | 1-1/2 in
Specifications Ratio Available
1:1
Specifications Sensitivity
1.0 Inch/WC | 2.54 cm
Specifications Variable Pressure Supply
<0.5 psig | <3.5 kPa
