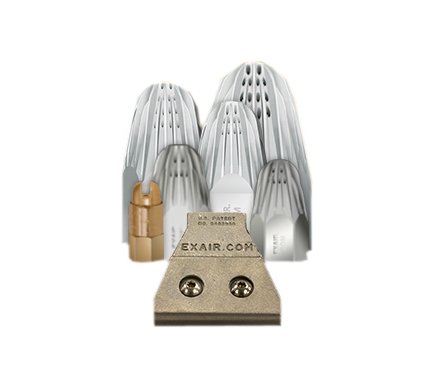

High Force Super Air Nozzle Cluster - Model 1111-7
High Force Super Air Nozzle Cluster - Model 1111-7
SKU:HIG-f15bcf
Enhance your industrial operations with the High Force Super Air Nozzle Cluster - Model 1111-7: powerful, compliant, and efficient.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
High Force Super Air Nozzle Cluster - Model 1111-7
$129.99
Quantity: 1
Claim Your Seller Account
High Force Super Air Nozzle Cluster - Model 1111-7
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The High Force Super Air Nozzle Cluster - Model 1111-7 from EXAIR is meticulously engineered to deliver exceptional blowing force for applications requiring extensive reach and high impact. Crafted from durable Zinc Aluminum alloy, this nozzle boasts a remarkable force of 5.7 lb (2585 g) at 80 psig (5.5 bar), ideal for tasks such as part injection, blowoff, cooling, and drying. With a noise level of 85 dBA and compliance with OSHA noise level and dead end pressure requirements, this nozzle ensures both efficiency and safety. Its versatile applications include air assist, chip removal, part cleaning, cooling, and more, making it a reliable solution for industrial needs.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Advantages
10 dBA Average Noise Reduction | Compact | Conserve Compressed Air | Improved Blowoff Performance | Improved Production | Improved Safety | Meets OSHA Noise Level Requirements | Meets OSHA Pressure Requirements | Reduced Compressed Air Cost
Specifications Air Consumption
98 SCFM | 2773 SLPM
Specifications Applications
Air Assist | Chip Removal | Fiber Conveying | Liquid Blowoff | Material Conveying | Part Cleaning | Part Cooling | Part Drying | Part Ejection
Specifications Force
5.7 lb | 2585 g
Specifications Inlet
1/2 FNPT
Specifications Material
Zinc Aluminum alloy
Specifications Note
Force measured at 12" (305 mm) from target
Specifications Pressure
80 psig | 5.5 bar
Specifications Sound Level
85 dBA
