High Force Super Air Nozzle - Model 1106
High Force Super Air Nozzle - Model 1106
SKU:HIG-c9f95a
Experience powerful, low-noise air delivery with the High Force Super Air Nozzle 1106. Meet OSHA standards for safe, efficient operations.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
High Force Super Air Nozzle - Model 1106
$89.99
Quantity: 1
Claim Your Seller Account
High Force Super Air Nozzle - Model 1106
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

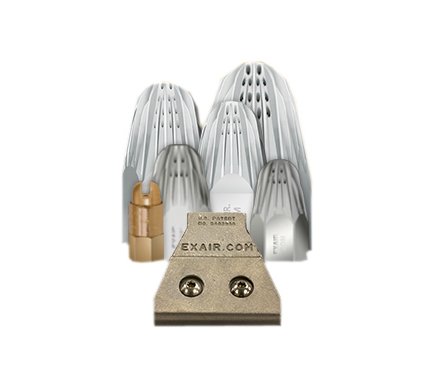

The High Force Super Air Nozzle Model 1106 by EXAIR is a powerful solution generating 3.3 lbs of blowing force, ideal for various industrial applications. Crafted from durable Zinc Aluminum alloy, this nozzle provides efficient air delivery with low noise levels, meeting OSHA standards. With 10 dBA noise reduction and significant air conservation, it improves safety, production efficiency, and reduces costs. Perfect for tasks like chip removal, part cleaning, and liquid blowoff, this compact device ensures enhanced performance while complying with industry regulations.
Product Specifications
Specifications Advantages
10 dBA Average Noise Reduction | Compact | Conserve Compressed Air | Improved Blowoff Performance | Improved Production | Improved Safety | Meets OSHA Noise Level Requirements | Meets OSHA Pressure Requirements | Reduced Compressed Air Cost
Specifications Air Consumption
60 SCFM | 1699 SLPM
Specifications Applications
Air Assist | Chip Removal | Fiber Conveying | Liquid Blowoff | Material Conveying | Part Cleaning | Part Cooling | Part Drying | Part Ejection
Specifications Force
3.3 lb | 1497 g
Specifications Inlet
1/2 FNPT
Specifications Material
Zinc Aluminum alloy
Specifications Note
Force measured at 12" (305 mm) from target
Specifications Pressure
80 psig | 5.5 bar
Specifications Sound Level
87 dBA
