Precisely measure compression forces with High-Frequency Compression Load Cells. Rugged, compact, and accurate load sensing technology.
Regular price
$1,299.99
Regular price
Sale price
$1,299.99
Unit price
per
Initiate Order
High-Frequency Compression Load Cells
$1,299.99
Quantity: 1
Claim Your Seller Account
High-Frequency Compression Load Cells
$1,299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

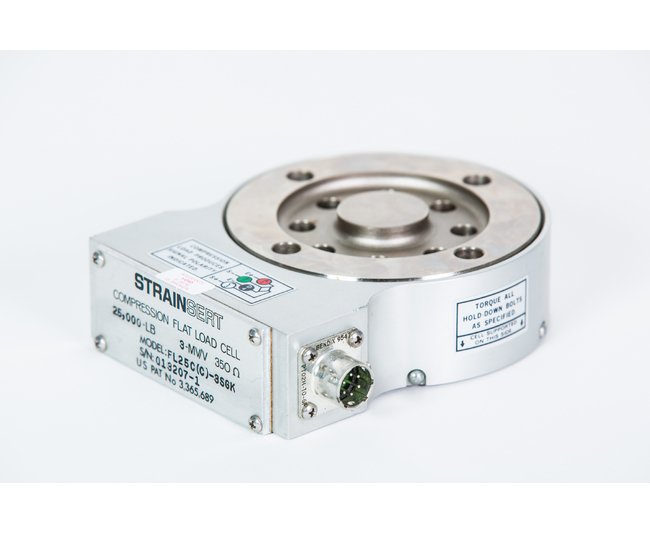

The High-Frequency Compression Load Cells are expertly designed to measure forces specifically in compression, offering a wide range from 250 to 2.5 million lbs. These load cells, exemplified by Model FL7.5C(C)-2SPK, boast a low profile, rugged construction that is both compact and lightweight. With high-frequency dynamic load sensing and pressure compensating sealed strain gauges, these load cells are ideal for applications requiring precise and reliable force measurement. The construction includes counterbored mounting holes and low sensitivity to extraneous loads, ensuring accurate readings and consistent performance. Additionally, the High-Frequency Compression Load Cells exhibit high static overload capabilities for added durability and reliability.
Product Specifications

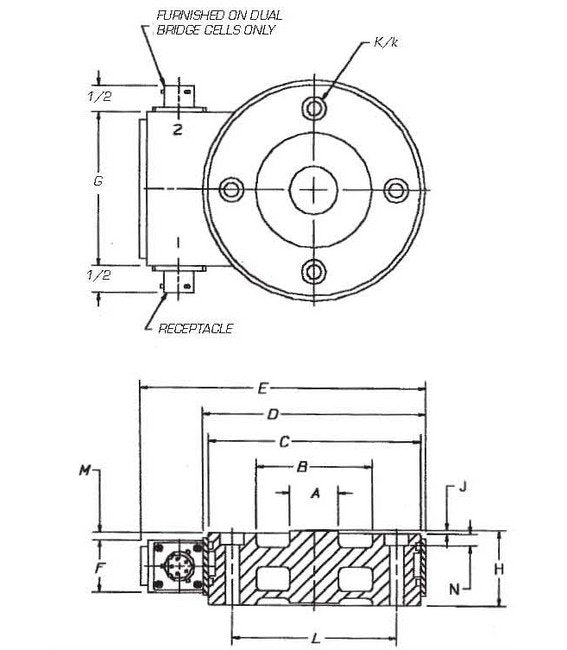

Dimensional Drawing Dimensional Drawing
Strainsert Compression Load Cell.jpg
Electrical Specifications Cable
#20(26x34) AWG., rubber insulation, shielded, rubber jacket, 4-Conductor (Standard Cable)
Electrical Specifications Excitation
Red
Electrical Specifications Function
Wire Code
Electrical Specifications Mating Plug
PT06A-10-6S (SR)
Electrical Specifications Receptacle
PT02H-10-6P
Electrical Specifications Signal
Green
Features 0
Low Profile, Rugged, Compact & Lightweight Low Deflection High Frequency Dynamic Load Sensing Pressure Compensating Sealed Strain Gages Counterbored Mounting Holes Low Sensitivity to Extraneous Loads High Static Overload
General Information 0
Load Cells are strain gage transducers developed by Strainsert (U.S. Patent No. 3,695,096). They are manufacured utilizing the internal strain gage process perfected by Strainsert since 1960. The structure is simple and compact, consisting of an inner loading hub and an outer supporting flange bridged smoothly by a uniformly continuous solid shear web avoiding structural stress risers.Strain gages are installed and sealed inside small gage holes along the neutral axis of the web. Linearity and symmetry of output signal is obtained by equal straining of all shear gages in the bridge circuit.Low deflection and high natural frequency are obtained, along with high resistance to extraneous forces. Mechanical and dynamic properties are fully tabulated.
Performance Specs Bridge Resistance
350 Ohms (Nominal)
Performance Specs Compensated Range
60 to 150 ºF
Performance Specs Effect On Output
±0.0030% Load/°F (Nominal)
Performance Specs Effect On Zero
±0.0035% FS/°F
Performance Specs Excitation Voltage
15V AC or DC (Maximum)
Performance Specs Hysteresis
General Purpose ±0.15% FS | Precision ±0.10% FS
Performance Specs Insulation Resistance
10,000 Megaohms (Minimum)
Performance Specs Non Linearity
General Purpose ±0.25% FS | Precision ±0.10% FS
Performance Specs Non Repeatability
±0.05% FS
Performance Specs Safe Static Overload Without Output Shift
200%FS
Performance Specs Safe Static Overload Without Structural Failur
250%FS
Performance Specs Safe Static Overload Without Zero Shift
200%FS
Performance Specs Zero Balance
±2% FS (Nominal)
Specifications A Diameter
21/32 in
Specifications B Diameter
1-7/16 in
Specifications Configuration
Dual Bridge | Single Bridge
Specifications Connector Type
Connector | Permanently Attached Cable
Specifications C Diameter
2-1/2 in
Specifications D Diameter
2-11/16 in
Specifications F Height
15/16 in
Specifications G Width
2-13/16 in
Specifications H Height
1-1/16 in
Specifications K Inside Diameter
5/32 in
Specifications K Outside Diameter
1/4 in
Specifications Lifting Holes Bc Diameter
NONE
Specifications Load Capacity
7,500 lb
Specifications L Diameter
1-7/8 in
Specifications Material Of Construction
Alloy Steel
Specifications N Depth Of Hole
5/32 in
