High Frequency Current Sense Transformers
$89.99
Quantity: 1
Claim Your Seller Account
High Frequency Current Sense Transformers
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

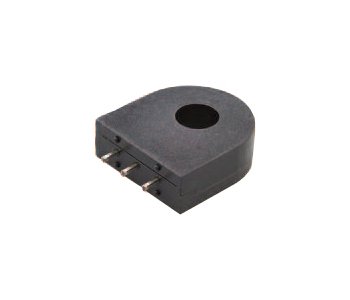

The CST206/CST306 Series High Frequency Current Sense Transformers are expertly designed for switching power supply applications, offering precise current detection capabilities within a frequency range of 20 kHz - 200 kHz. Built with UL rated 130°C materials, these transformers ensure reliable and efficient operation. Featuring models with a center tap option, these transformers boast a turns count of 100, a primary RMS current of 110.0 A, and an overall turn ratio of 200. With a minimum inductance of 14.0 mH and maximum DCR of 0.580 Ohm, these transformers are optimized for high-performance industrial applications, meeting the stringent requirements of institutional buyers.
Product Specifications
Specifications Et Vsec Ref 20 Khz
2000
Specifications Frequency
20 to 200 kHz
Specifications Max Dcr
0.580 Ohm
Specifications Min Inductance
14.0 mH
Specifications Overall Turn Ratio
200
Specifications Primary Rms Current
110.0 A
Specifications Transformer Contact Type
Center Tap
Specifications Turns Count
100 Center Tap
Specifications Ul Rated Material Temperature
130 ºC

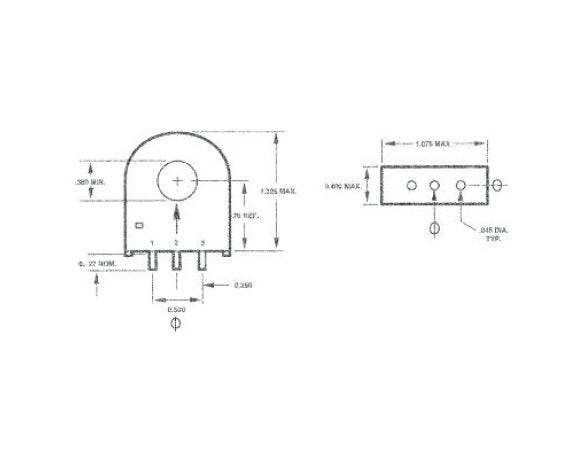

Technical Notes 0

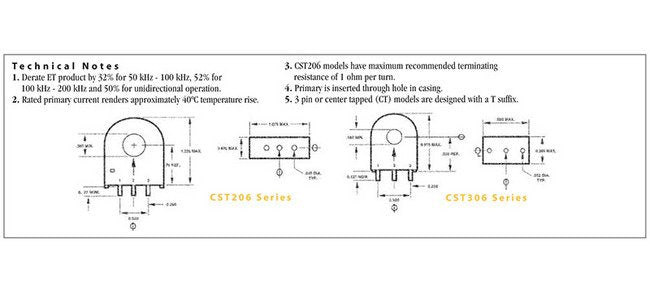

Derate ET product by 32% for 50 kHz - 100 kHz, 52% for 100 kHz - 200 kHz and 50% for unidirectional operation. Rated primary current renders approximately 40 ºC temperature rise. CST206 models have maximum recommended terminating rise CST206 models have maximum recommended terminating resistance of 1 ohm per turn Primary is inserted through hole is casing 3 pin or center tapped (CT) models aree deisgned with a T suffix
