High Frequency Current Sense Transformers
$59.99
Quantity: 1
Claim Your Seller Account
High Frequency Current Sense Transformers
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

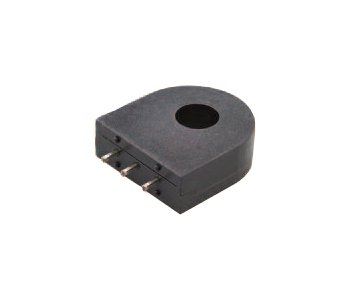

The CST206/CST306 Series High Frequency Current Sense Transformers are expertly designed for switching power supply applications, ensuring precise current detection with unparalleled reliability. Operating seamlessly within a frequency range of 20 kHz - 200 kHz, these transformers are constructed using UL rated 130°C materials, guaranteeing optimal performance and durability. Offering a variety of specifications including a turns count of 200, primary RMS current of 25.0 A, and an overall turn ratio of 200, these transformers are intricately engineered to meet the stringent demands of institutional and government buyers.
Product Specifications
Specifications Et Vsec Ref 20 Khz
2000
Specifications Frequency
20 to 200 kHz
Specifications Max Dcr
3.750 Ohm
Specifications Min Inductance
55.0 mH
Specifications Overall Turn Ratio
200
Specifications Primary Rms Current
25.0 A
Specifications Turns Count
200
Specifications Ul Rated Material Temperature
130 ºC

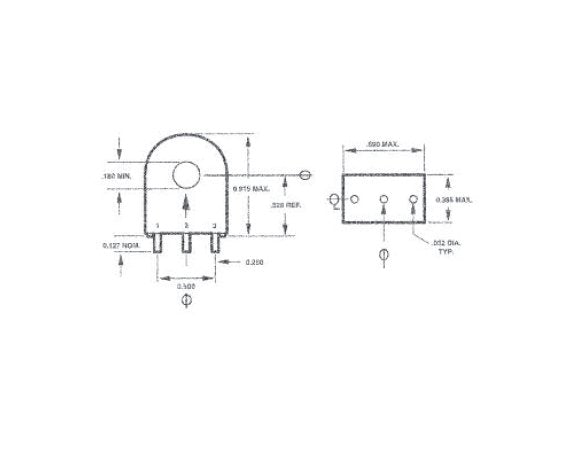

Technical Notes 0

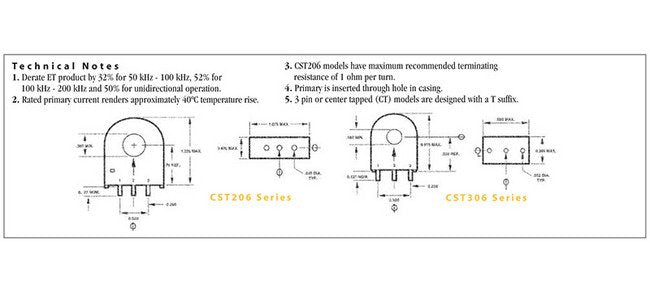

Derate ET product by 32% for 50 kHz - 100 kHz, 52% for 100 kHz - 200 kHz and 50% for unidirectional operation. Rated primary current renders approximately 40 ºC temperature rise. CST206 models have maximum recommended terminating rise CST206 models have maximum recommended terminating resistance of 1 ohm per turn Primary is inserted through hole is casing 3 pin or center tapped (CT) models aree deisgned with a T suffix
