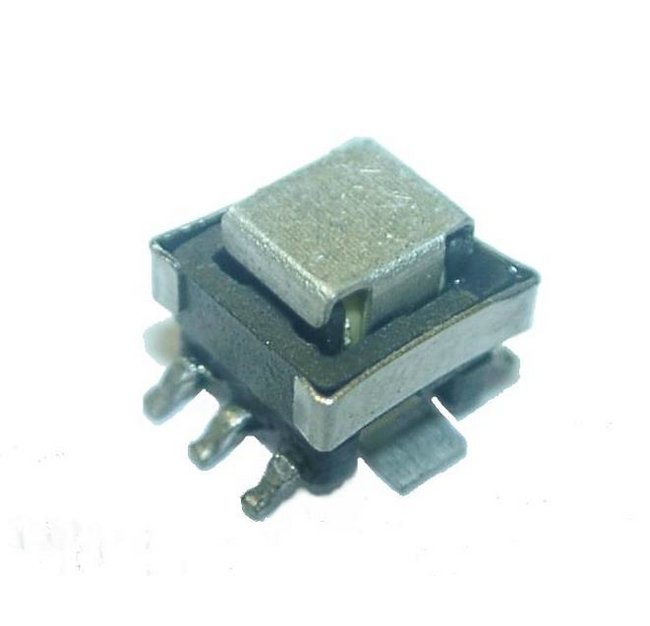

The CSE5 Series High Frequency Current Sense Transformers are expertly designed for optimal performance at 250 kHz and above. Featuring a surface mounting design, these transformers offer a primary current rating of 20 A and a maximum height of 5.3 mm. With a turns ratio of 1:50 and custom design options available, they ensure precise current sensing in applications such as AC current detection and switching power supplies. RoHS compliant since February 2016, meeting the requirements of 2015/863/EU.

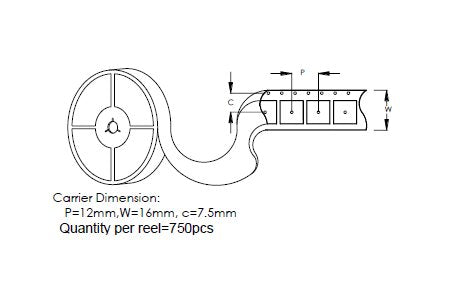

Product Specifications
Applications Applications
Ac current detectionOutput supply for control circuitSwitching Power Supply
Electrical Specifications At 25 Degree Celsius C Temperature Col
Blue
Electrical Specifications At 25 Degree Celsius C Temperature Max
1500 mOhm
Electrical Specifications At 25 Degree Celsius C Temperature Min
500 µH

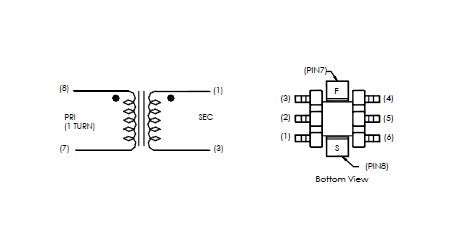

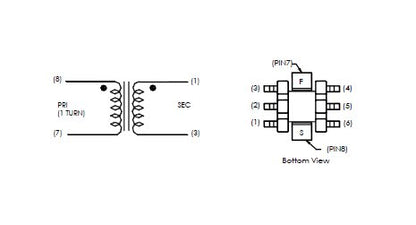

Electrical Specifications At 25 Degree Celsius C Temperature Tur
1:50
Rohs Compliance Rohs Compliance
As of manufacturing date February 2016, all standard products meet the requirements of 2015/863/EU, known as the RoHS 3 initiative.
Specifications Frequency
250 kHz
Specifications Maximum Energy Time Et
27.0 V·µs

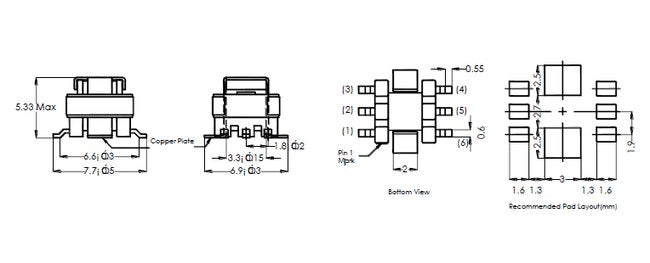

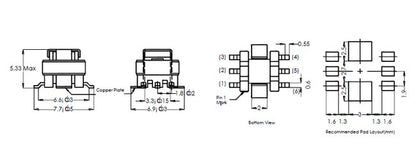

Specifications Maximum Height
5.3 mm
Specifications Min Insulation Resistance
10 mOhm
Specifications Operating Temperature Range
-15 to +105 ºC
Specifications Primary Current Rating
20 A
