High Frequency Current Sense Transformers - CSE5 Series
High Frequency Current Sense Transformers - CSE5 Series
SKU:CUR-1f8c78
High Frequency Current Sense Transformers with 250 kHz performance, 20A primary current rating, and RoHS compliance.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
High Frequency Current Sense Transformers - CSE5 Series
$49.99
Quantity: 1
Claim Your Seller Account
High Frequency Current Sense Transformers - CSE5 Series
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

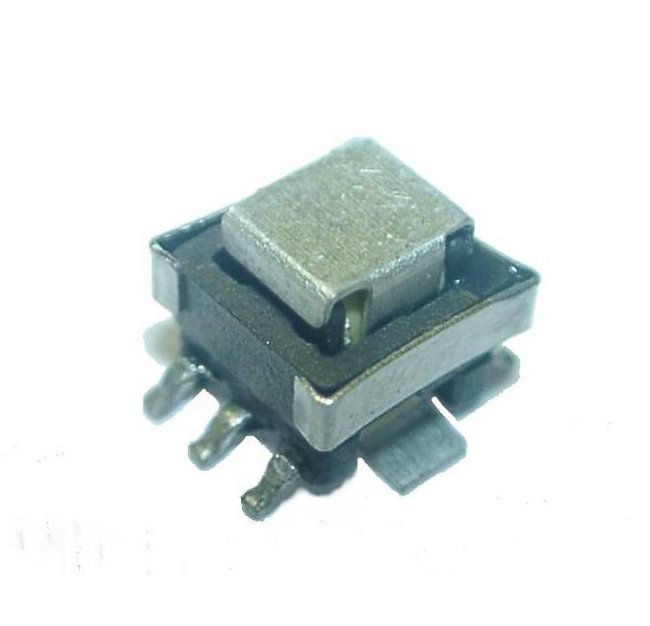

The CSE5 Series High Frequency Current Sense Transformers offer exceptional performance at 250 kHz and above, with a surface mounting design for easy installation. Featuring a 1:40 turns ratio, a primary current rating of 20 A, and excellent insulation resistance of 10 mOhm, these transformers are ideal for AC current detection, output supply for control circuits, and switching power supply applications. RoHS compliant and meeting the standards of 2015/863/EU, known as the RoHS 3 initiative, these transformers guarantee both quality and environmental responsibility.
Product Specifications
Applications Applications
Ac current detectionOutput supply for control circuitSwitching Power Supply
Electrical Specifications At 25 Degree Celsius C Temperature Col
Yellow
Electrical Specifications At 25 Degree Celsius C Temperature Max
1140 mOhm
Electrical Specifications At 25 Degree Celsius C Temperature Min
320 µH

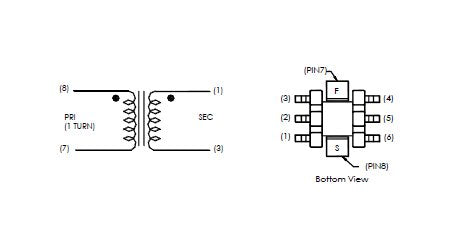

Electrical Specifications At 25 Degree Celsius C Temperature Tur
1:40
Rohs Compliance Rohs Compliance
As of manufacturing date February 2016, all standard products meet the requirements of 2015/863/EU, known as the RoHS 3 initiative.
Specifications Frequency
250 kHz
Specifications Maximum Energy Time Et
21.6 V·µs

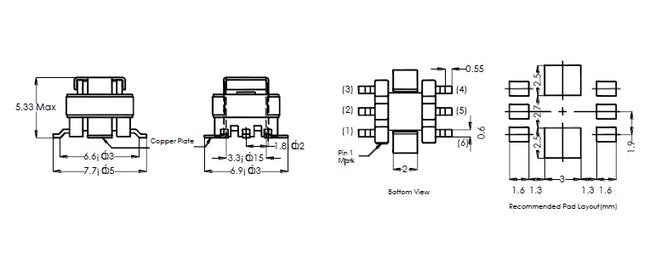

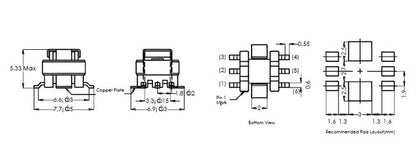

Specifications Maximum Height
5.3 mm
Specifications Min Insulation Resistance
10 mOhm
Specifications Operating Temperature Range
-15 to +105 ºC
Specifications Primary Current Rating
20 A
