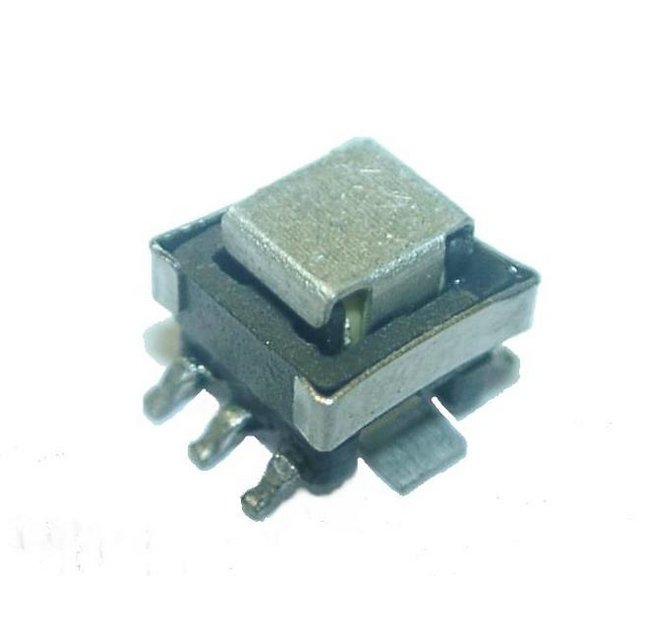

The CSE5 Series High Frequency Current Sense Transformers are designed for optimal performance at 250 kHz and above, with a surface mounting design for easy installation. Featuring a 1:60 turns ratio, minimum secondary impedance of 720 µH, and maximum secondary DCR of 1750 mOhm, these transformers ensure precise current sensing. With a primary current rating of 20 A and an operating temperature range of -15 to +105 ºC, they are ideal for AC current detection, output supply for control circuit, and Switching Power Supply applications. RoHS compliant since February 2016, meeting the requirements of 2015/863/EU.
Product Specifications
Applications Applications
Ac current detectionOutput supply for control circuitSwitching Power Supply
Electrical Specifications At 25 Degree Celsius C Temperature Col
Black
Electrical Specifications At 25 Degree Celsius C Temperature Max
1750 mOhm
Electrical Specifications At 25 Degree Celsius C Temperature Min
720 µH

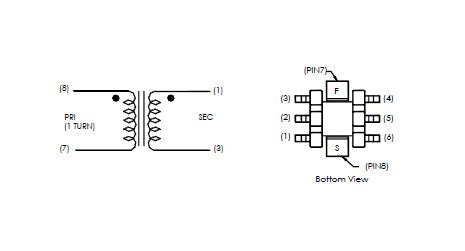

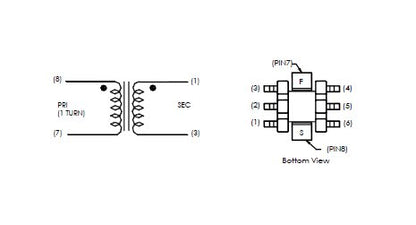

Electrical Specifications At 25 Degree Celsius C Temperature Tur
1:60
Rohs Compliance Rohs Compliance
As of manufacturing date February 2016, all standard products meet the requirements of 2015/863/EU, known as the RoHS 3 initiative.
Specifications Frequency
250 kHz
Specifications Maximum Energy Time Et
32.4 V·µs

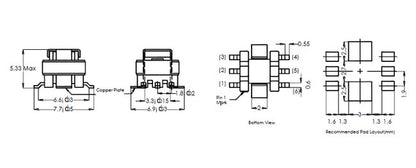

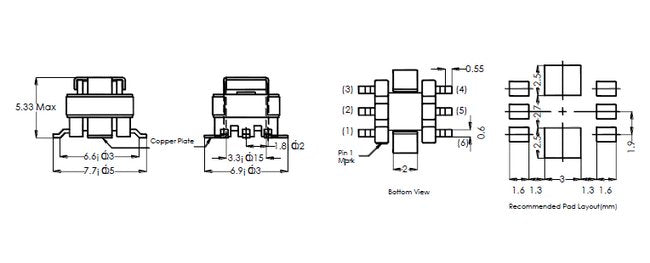

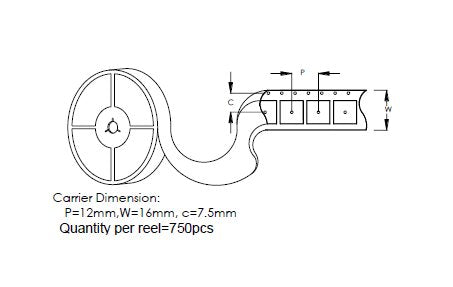

Specifications Maximum Height
5.3 mm
Specifications Min Insulation Resistance
10 mOhm
Specifications Operating Temperature Range
-15 to +105 ºC
Specifications Primary Current Rating
20 A
