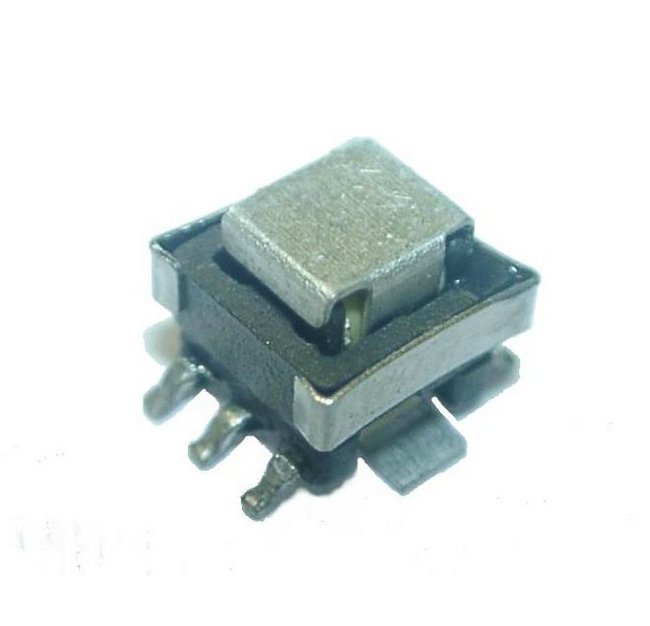

The CSE5 Series High Frequency Current Sense Transformers are designed for optimal performance at frequencies of 250 kHz and above. With a surface mounting design and custom options available, these transformers offer a primary current rating of 20 A and maximum energy time of 16.2 V·µs. Featuring a compact height of 5.3 mm, they boast a minimum insulation resistance of 10 mOhm and operate within a temperature range of -15 to +105 ºC. Ideal for AC current detection, output supply for control circuits, and switching power supplies.

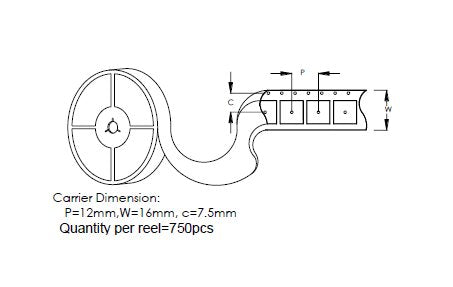

Product Specifications
Applications Applications
Ac current detectionOutput supply for control circuitSwitching Power Supply
Electrical Specifications At 25 Degree Celsius C Temperature Col
Purple
Electrical Specifications At 25 Degree Celsius C Temperature Max
870 mOhm
Electrical Specifications At 25 Degree Celsius C Temperature Min
180 µH

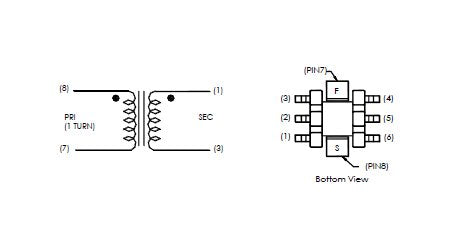

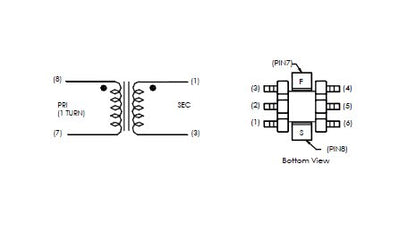

Electrical Specifications At 25 Degree Celsius C Temperature Tur
1:30
Rohs Compliance Rohs Compliance
As of manufacturing date February 2016, all standard products meet the requirements of 2015/863/EU, known as the RoHS 3 initiative.
Specifications Frequency
250 kHz
Specifications Maximum Energy Time Et
16.2 V·µs

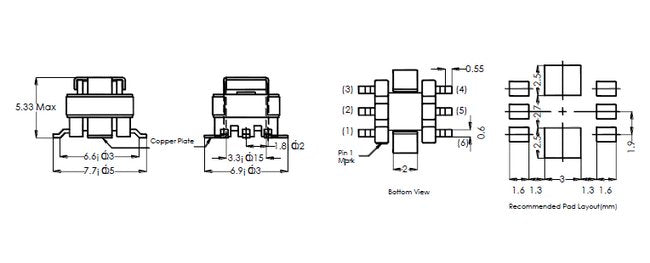

Specifications Maximum Height
5.3 mm
Specifications Min Insulation Resistance
10 mOhm
Specifications Operating Temperature Range
-15 to +105 ºC
Specifications Primary Current Rating
20 A
