High Frequency Current Sense Transformers - CSE5 Series
High Frequency Current Sense Transformers - CSE5 Series
SKU:CUR-cbd39a
Enhance AC current detection with CSE5 Series High Frequency Current Sense Transformers. Optimal performance at 250 kHz and above. RoHS compliant.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
High Frequency Current Sense Transformers - CSE5 Series
$59.99
Quantity: 1
Claim Your Seller Account
High Frequency Current Sense Transformers - CSE5 Series
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

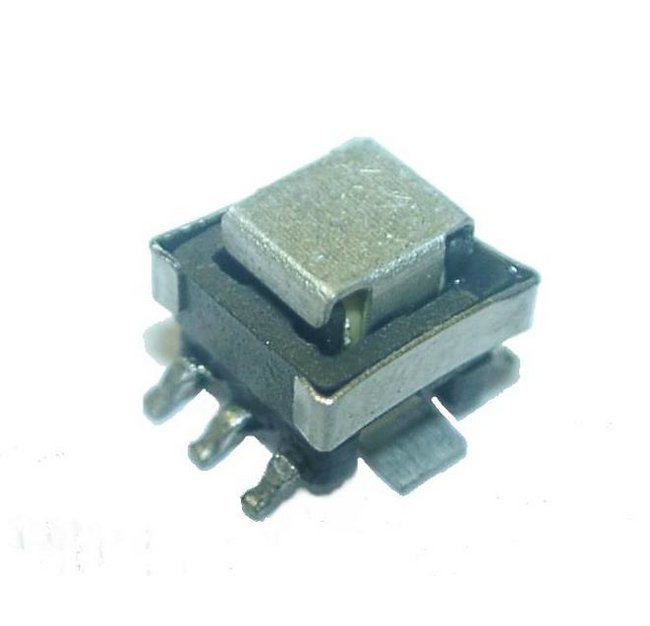

The CSE5 Series High Frequency Current Sense Transformers offer optimal performance at 250 kHz and above, with a surface mounting design for efficiency. Featuring a turns ratio of 1:20, a primary current rating of 20 A, and RoHS compliance as of manufacturing date February 2016, these transformers provide reliable AC current detection, output supply for control circuits, and are suitable for switching power supply applications. With a maximum height of 5.3 mm and operating temperature range from -15 to +105 ºC, these transformers are designed for precision and durability.
Product Specifications
Applications Applications
Ac current detectionOutput supply for control circuitSwitching Power Supply
Electrical Specifications At 25 Degree Celsius C Temperature Col
White
Electrical Specifications At 25 Degree Celsius C Temperature Max
550 mOhm
Electrical Specifications At 25 Degree Celsius C Temperature Min
80 µH

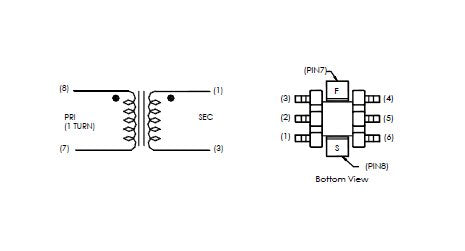

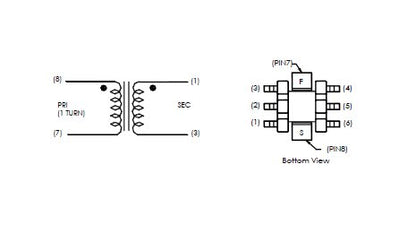

Electrical Specifications At 25 Degree Celsius C Temperature Tur
1:20
Rohs Compliance Rohs Compliance
As of manufacturing date February 2016, all standard products meet the requirements of 2015/863/EU, known as the RoHS 3 initiative.
Specifications Frequency
250 kHz
Specifications Maximum Energy Time Et
10.8 V·µs

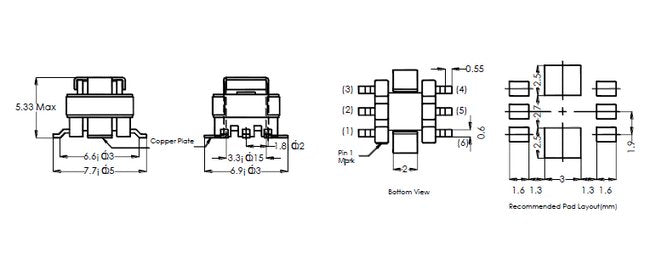

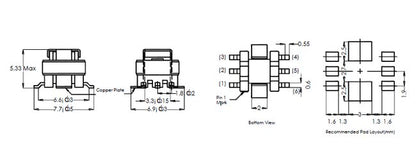

Specifications Maximum Height
5.3 mm
Specifications Min Insulation Resistance
10 mOhm
Specifications Operating Temperature Range
-15 to +105 ºC
Specifications Primary Current Rating
20 A
