High Frequency Current Sense Transformers - CSE5 Series
$49.99
Quantity: 1
Claim Your Seller Account
High Frequency Current Sense Transformers - CSE5 Series
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

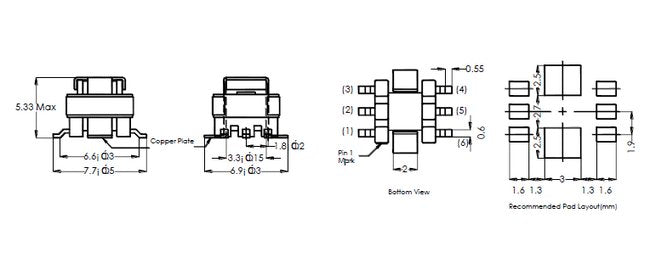

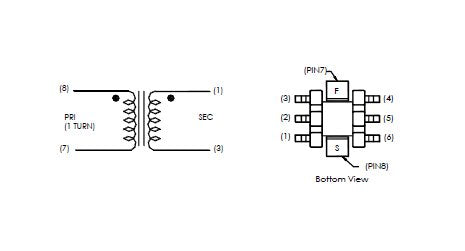

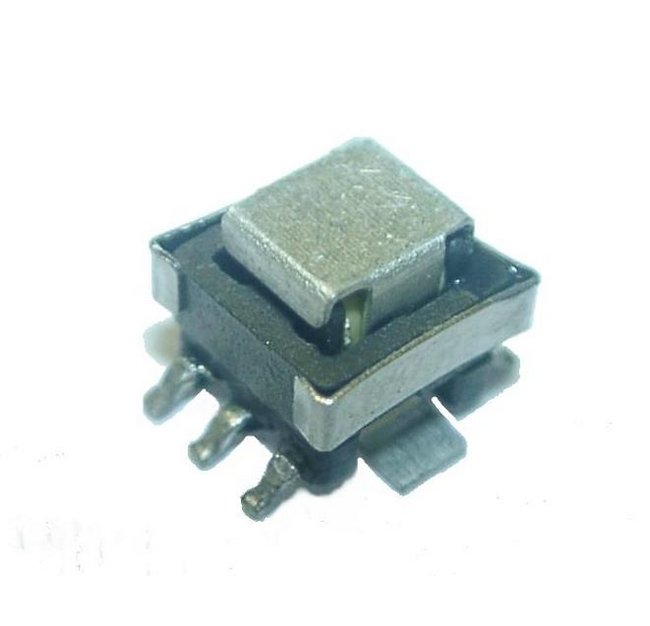

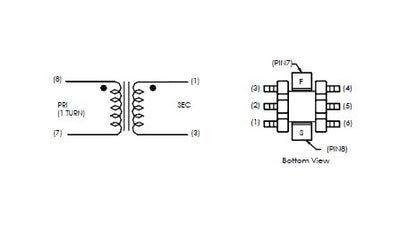

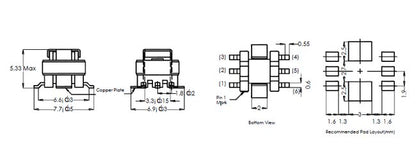

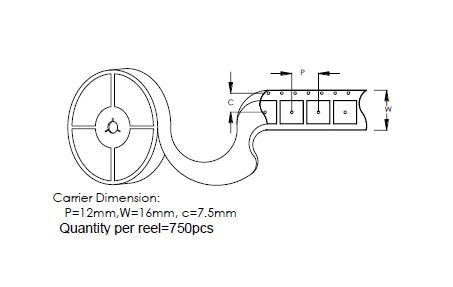

The CSE5 Series High Frequency Current Sense Transformers offer optimal performance at 250 kHz and above, designed for surface mounting. With a primary current rating of 20 A, these transformers have a turns ratio of 1:100, ensuring precise current sensing. They feature a maximum height of 5.3 mm, RoHS compliance, and customizable designs. Ideal for AC current detection, control circuit output supply, and switching power supply applications.
Product Specifications
Applications Applications
Ac current detectionOutput supply for control circuitSwitching Power Supply
Electrical Specifications At 25 Degree Celsius C Temperature Col
Orange
Electrical Specifications At 25 Degree Celsius C Temperature Max
5500 mOhm
Electrical Specifications At 25 Degree Celsius C Temperature Min
2000 µH
Electrical Specifications At 25 Degree Celsius C Temperature Tur
1:100
Rohs Compliance Rohs Compliance
As of manufacturing date February 2016, all standard products meet the requirements of 2015/863/EU, known as the RoHS 3 initiative.
Specifications Frequency
250 kHz
Specifications Maximum Energy Time Et
54.0 V·µs
Specifications Maximum Height
5.3 mm
Specifications Min Insulation Resistance
10 mOhm
Specifications Operating Temperature Range
-15 to +105 ºC
Specifications Primary Current Rating
20 A
