High Frequency Current Sense Transformers - CST206/CST306
$49.99
Quantity: 1
Claim Your Seller Account
High Frequency Current Sense Transformers - CST206/CST306
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

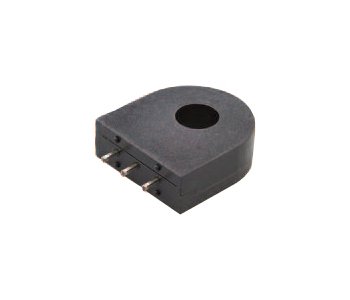

The CST206/CST306 Series High Frequency Current Sense Transformers are expertly designed for switching power supply applications, ideal for detecting current flow in conductors. These transformers offer exceptional reliability and efficient operation between 20 kHz to 200 kHz frequencies. Constructed with UL rated 130°C materials, they ensure durability and safety. With features like a center tap option, ET VµSEC REF 20 kHz of 1000, and a primary RMS current of 25.0 A, these transformers provide precise and accurate current sensing capabilities for various applications.
Product Specifications
Specifications Et Vsec Ref 20 Khz
1000
Specifications Frequency
20 to 200 kHz
Specifications Max Dcr
1.550 Ohm
Specifications Min Inductance
14.0 mH
Specifications Overall Turn Ratio
100
Specifications Primary Rms Current
25.0 A
Specifications Turns Count
100
Specifications Ul Rated Material Temperature
130 ºC

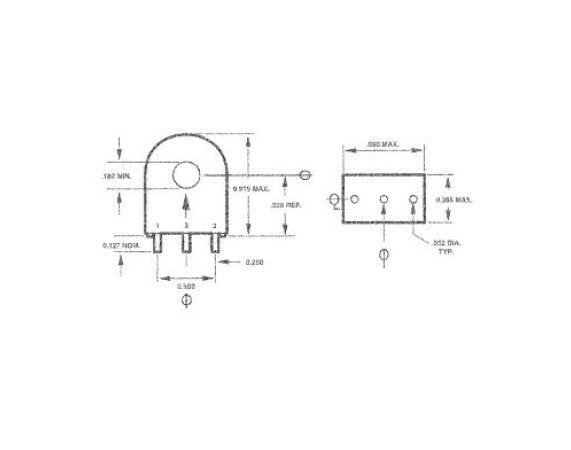

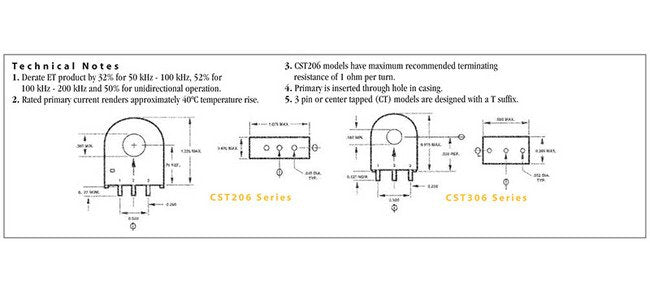

Technical Notes 0
Derate ET product by 32% for 50 kHz - 100 kHz, 52% for 100 kHz - 200 kHz and 50% for unidirectional operation. Rated primary current renders approximately 40 ºC temperature rise. CST206 models have maximum recommended terminating rise CST206 models have maximum recommended terminating resistance of 1 ohm per turn Primary is inserted through hole is casing 3 pin or center tapped (CT) models aree deisgned with a T suffix
