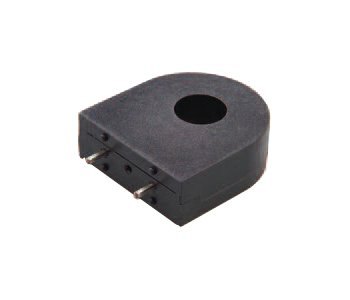

High Frequency Current Sense Transformers - CST206/CST306 Series

Name: High Frequency Current Sense Transformers - CST206/CST306 Series
Brand: Triad Magnetics
SKU: CUR-73501d
Price: 49.99 USD
Availability: OutOfStock

SKU:CUR-73501d

Reliable High Frequency Current Sense Transformers for accurate current detection in switching power supply applications.

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The CST206/CST306 Series High Frequency Current Sense Transformers are expertly designed for switching power supply applications, enabling precise detection of current flow through conductors. With a frequency range of 20 kHz to 200 kHz and constructed from UL rated 130 °C materials, these transformers offer exceptional reliability and efficiency. Featuring attributes like an ET VµSEC REF of 4000 at 20 kHz, 200 turns count, and a primary RMS current of 80.0 A, these transformers ensure accurate current sensing. Ideal for industrial and institutional applications, these models come in center tap options for added versatility.

Product Specifications

Specifications Et Vsec Ref 20 Khz

4000

Specifications Frequency

20 to 200 kHz

Specifications Max Dcr

3.500 Ohm

Specifications Min Inductance

56.0 mH

Specifications Overall Turn Ratio

200

Specifications Primary Rms Current

80.0 A

Specifications Turns Count

200

Specifications Ul Rated Material Temperature

130 ÂºC

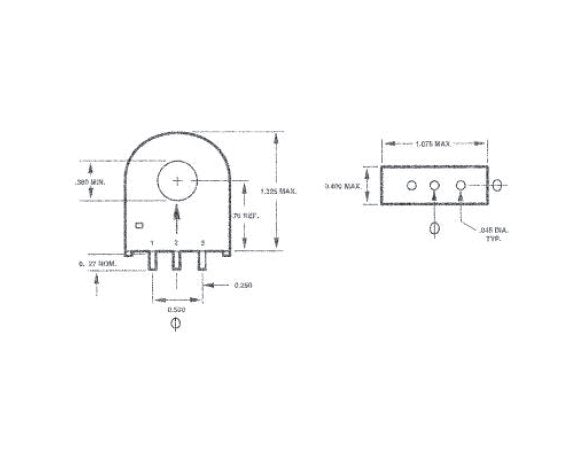

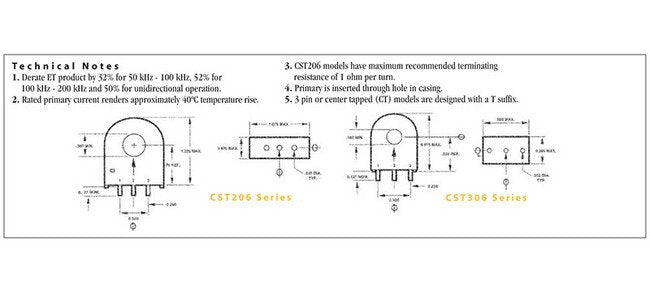

Technical Notes 0

Derate ET product by 32% for 50 kHz - 100 kHz, 52% for 100 kHz - 200 kHz and 50% for unidirectional operation. Rated primary current renders approximately 40 ÂºC temperature rise. CST206 models have maximum recommended terminating rise CST206 models have maximum recommended terminating resistance of 1 ohm per turn Primary is inserted through hole is casing 3 pin or center tapped (CT) models aree deisgned with a T suffix

High Frequency Current Sense Transformers - CST206/CST306 Series
