High Frequency Current Sense Transformers - CST206/CST306 Series
High Frequency Current Sense Transformers - CST206/CST306 Series
SKU:CUR-0045df
Reliable and efficient CST206/CST306 Series High Frequency Current Sense Transformers for precise current detection in power supply applications.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
High Frequency Current Sense Transformers - CST206/CST306 Series
$49.99
Quantity: 1
Claim Your Seller Account
High Frequency Current Sense Transformers - CST206/CST306 Series
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

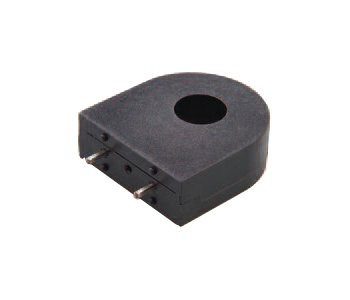

The CST206/CST306 Series High Frequency Current Sense Transformers are meticulously designed for exceptional performance in switching power supply applications. With an impressive frequency range of 20 kHz to 200 kHz and constructed using UL rated 130°C materials, these transformers offer unmatched reliability and efficiency. Featuring an overall turn ratio of 300, primary RMS current of 70.0A, and a center tap option available, these transformers ensure precise detection of current passing through conductors. The models come with technical enhancements such as minimum inductance of 130.0 mH and max DCR of 12.400 Ohm, meeting the stringent requirements of modern power systems.
Product Specifications
Specifications Et Vsec Ref 20 Khz
6000
Specifications Frequency
20 to 200 kHz
Specifications Max Dcr
12.400 Ohm
Specifications Min Inductance
130.0 mH
Specifications Overall Turn Ratio
300
Specifications Primary Rms Current
70.0 A
Specifications Turns Count
300
Specifications Ul Rated Material Temperature
130 ºC

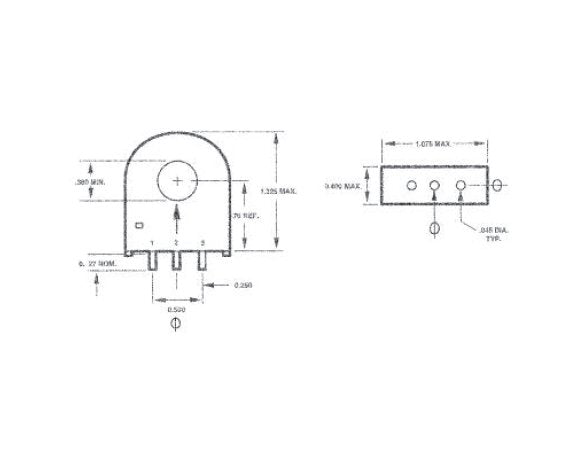

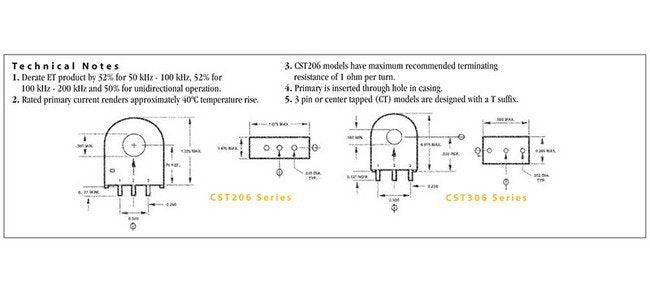

Technical Notes 0
Derate ET product by 32% for 50 kHz - 100 kHz, 52% for 100 kHz - 200 kHz and 50% for unidirectional operation. Rated primary current renders approximately 40 ºC temperature rise. CST206 models have maximum recommended terminating rise CST206 models have maximum recommended terminating resistance of 1 ohm per turn Primary is inserted through hole is casing 3 pin or center tapped (CT) models aree deisgned with a T suffix
