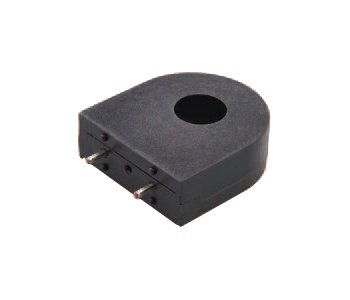

The CST206/CST306 Series High Frequency Current Sense Transformers by Triad are expertly designed for switching power supply applications, ensuring accurate detection of current flow. With a frequency range of 20 kHz to 200 kHz, these transformers offer reliable operation under various conditions. Constructed from UL rated 130 °C materials, these models provide optimal performance and durability. Featuring a center tap option and specifications such as a primary RMS current of 35.0 A, 50 turns count, and a minimum inductance of 3.50 mH, these transformers are ideal for precision applications in institutional and government settings.
Product Specifications
Specifications Et Vsec Ref 20 Khz
500
Specifications Frequency
20 to 200 kHz
Specifications Max Dcr
0.340 Ohm
Specifications Min Inductance
3.50 mH
Specifications Overall Turn Ratio
50
Specifications Primary Rms Current
35.0 A
Specifications Transformer Contact Type
Center Tap
Specifications Turns Count
50 Center Tap
Specifications Ul Rated Material Temperature
130 ºC

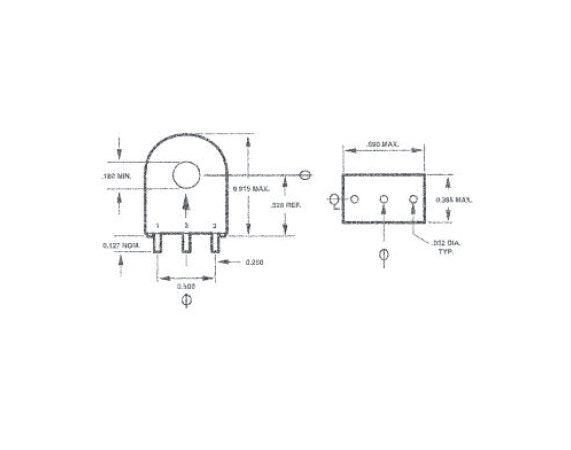

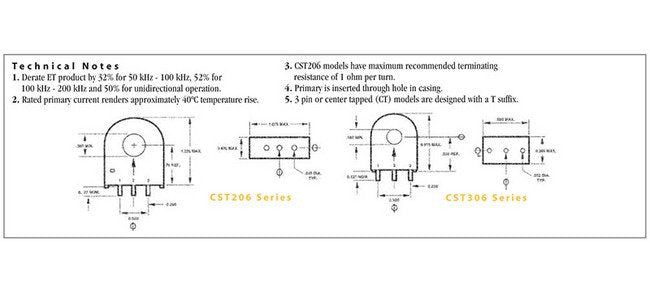

Technical Notes 0
Derate ET product by 32% for 50 kHz - 100 kHz, 52% for 100 kHz - 200 kHz and 50% for unidirectional operation. Rated primary current renders approximately 40 ºC temperature rise. CST206 models have maximum recommended terminating rise CST206 models have maximum recommended terminating resistance of 1 ohm per turn Primary is inserted through hole is casing 3 pin or center tapped (CT) models aree deisgned with a T suffix
