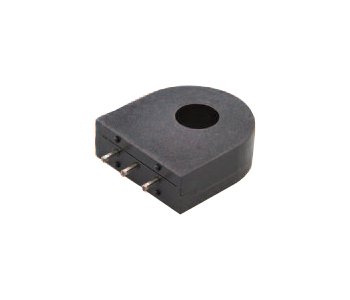

High Frequency Current Sense Transformers - CST206/CST306 Series
High Frequency Current Sense Transformers - CST206/CST306 Series
SKU:CUR-38760a
Achieve precise current sensing in switching power supplies with the CST206/CST306 High Frequency Transformers. Reliable, efficient, and UL rated.
Regular price
$69.99
Regular price
Sale price
$69.99
Unit price
per
Initiate Order
High Frequency Current Sense Transformers - CST206/CST306 Series
$69.99
Quantity: 1
Claim Your Seller Account
High Frequency Current Sense Transformers - CST206/CST306 Series
$69.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The CST206/CST306 Series High Frequency Current Sense Transformers are expertly designed for switching power supply applications, offering precise current detection with reliability. Operating effectively within a frequency range of 20kHz to 200kHz, these transformers consist of UL rated 130°C materials. With features like center tap options, ET VµSEC REF of 500 at 20 kHz, primary RMS current of 35.0 A, and maximum DCR of 0.340 Ohm, these transformers provide optimal performance and accuracy for various applications.

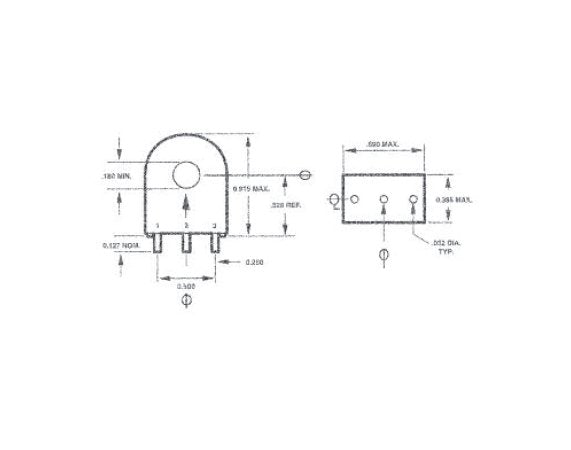

Product Specifications
Specifications Et Vsec Ref 20 Khz
500
Specifications Frequency
20 to 200 kHz
Specifications Max Dcr
0.340 Ohm
Specifications Min Inductance
3.50 mH
Specifications Overall Turn Ratio
50
Specifications Primary Rms Current
35.0 A
Specifications Turns Count
50
Specifications Ul Rated Material Temperature
130 ºC

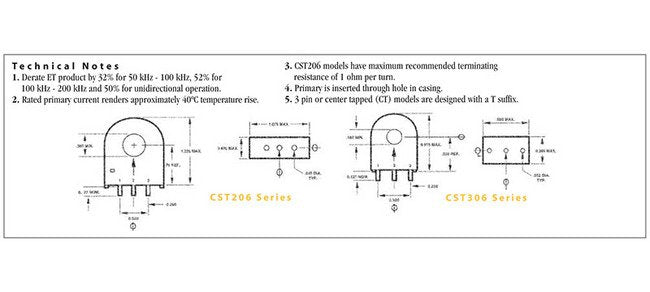

Technical Notes 0
