High Frequency Current Sense Transformers - CST206/CST306 Series
High Frequency Current Sense Transformers - CST206/CST306 Series
SKU:CUR-8b0bfc
Reliable high frequency current sense transformers designed for precise current detection in power supply applications. UL-rated materials, center tap option, and optimal performance in the 20-200 kHz frequency range.
Regular price
$45.99
Regular price
Sale price
$45.99
Unit price
per
Initiate Order
High Frequency Current Sense Transformers - CST206/CST306 Series
$45.99
Quantity: 1
Claim Your Seller Account
High Frequency Current Sense Transformers - CST206/CST306 Series
$45.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

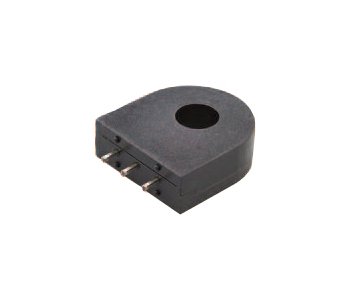

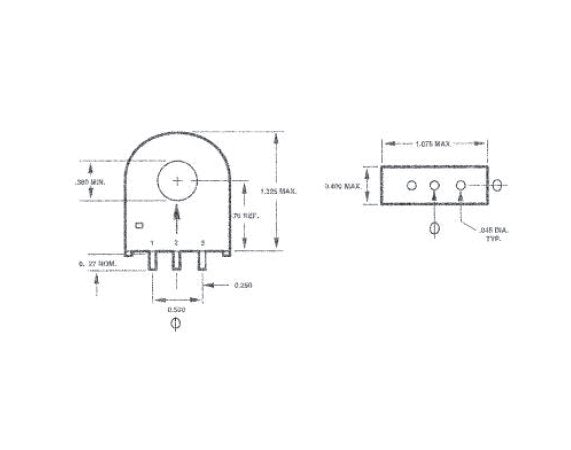

The CST206/CST306 Series High Frequency Current Sense Transformers by Triad are meticulously designed for precise current detection in switching power supply applications. With a frequency range spanning from 20 kHz to 200 kHz, these transformers offer exceptional reliability and efficiency, constructed with UL-rated 130°C materials. Featuring a center tap option, these transformers boast an impressive set of specifications including a Turns Count of 300, Min. Inductance of 130.0 mH, and a Primary RMS Current of 70.0 A. Derate ET product for optimal performance within specific frequency ranges. Suitable for various industrial and institutional applications.
Product Specifications
Specifications Et Vsec Ref 20 Khz
6000
Specifications Frequency
20 to 200 kHz
Specifications Max Dcr
12.400 Ohm
Specifications Min Inductance
130.0 mH
Specifications Overall Turn Ratio
300
Specifications Primary Rms Current
70.0 A
Specifications Transformer Contact Type
Center Tap
Specifications Turns Count
300 Center Tap
Specifications Ul Rated Material Temperature
130 ºC
Technical Notes 0

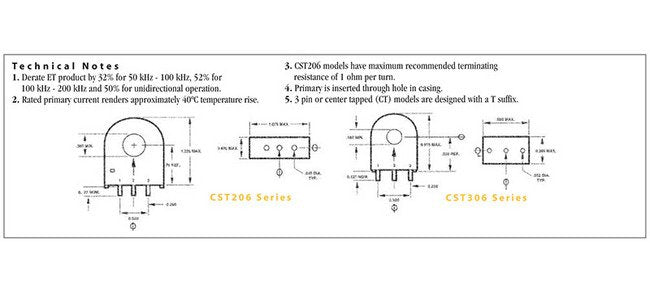

Derate ET product by 32% for 50 kHz - 100 kHz, 52% for 100 kHz - 200 kHz and 50% for unidirectional operation. Rated primary current renders approximately 40 ºC temperature rise. CST206 models have maximum recommended terminating rise CST206 models have maximum recommended terminating resistance of 1 ohm per turn Primary is inserted through hole is casing 3 pin or center tapped (CT) models aree deisgned with a T suffix
