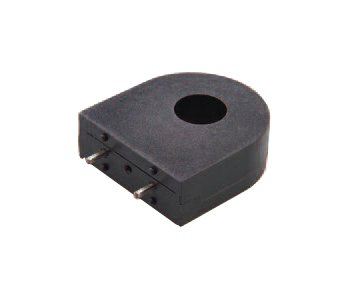

High Frequency Current Sense Transformers CST206/CST306 Series

Name: High Frequency Current Sense Transformers CST206/CST306 Series
Brand: Triad Magnetics
SKU: CUR-f8bb87
Price: 69.99 USD
Availability: OutOfStock

SKU:CUR-f8bb87

Reliable High Frequency Current Sense Transformers for power supply applications, offering accuracy and safety at 20-200 kHz range with UL-rated materials.

$69.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The CST206/CST306 Series High Frequency Current Sense Transformers are expertly designed for switching power supply applications, ensuring accurate detection of current flow within conductors. These transformers offer unmatched reliability and peak performance across a frequency range of 20 kHz to 200 kHz. Constructed with UL-rated 130 ºC materials, they are built to meet the highest standards of durability and safety. With options for center tap configuration, these transformers deliver precise measurements and seamless integration into various systems.

Product Specifications

Specifications Et Vsec Ref 20 Khz

2000

Specifications Frequency

20 to 200 kHz

Specifications Max Dcr

0.580 Ohm

Specifications Min Inductance

14.0 mH

Specifications Overall Turn Ratio

100

Specifications Primary Rms Current

110.0 A

Specifications Turns Count

100

Specifications Ul Rated Material Temperature

130 ÂºC

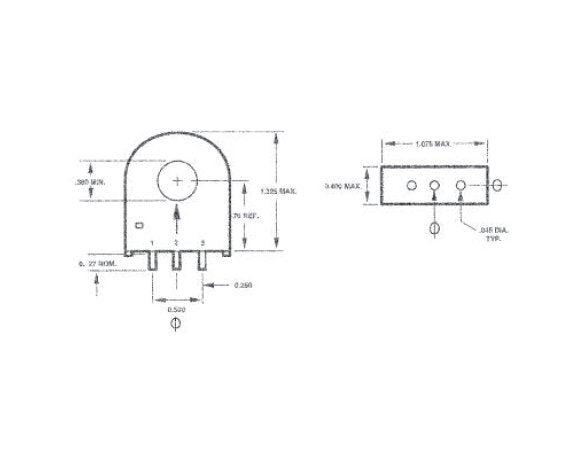

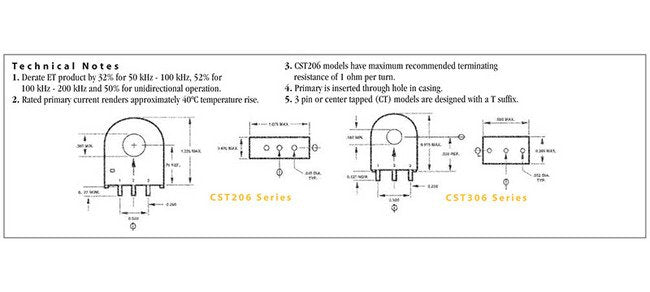

Technical Notes 0

Derate ET product by 32% for 50 kHz - 100 kHz, 52% for 100 kHz - 200 kHz and 50% for unidirectional operation. Rated primary current renders approximately 40 ÂºC temperature rise. CST206 models have maximum recommended terminating rise CST206 models have maximum recommended terminating resistance of 1 ohm per turn Primary is inserted through hole is casing 3 pin or center tapped (CT) models aree deisgned with a T suffix
