High-Frequency Current Sense Transformers - CST206/CST306 Series
$69.99
Quantity: 1
Claim Your Seller Account
High-Frequency Current Sense Transformers - CST206/CST306 Series
$69.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

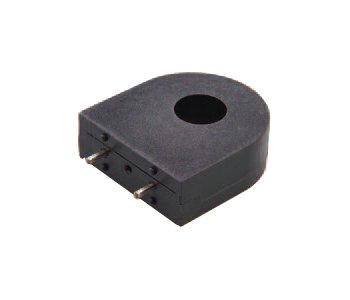

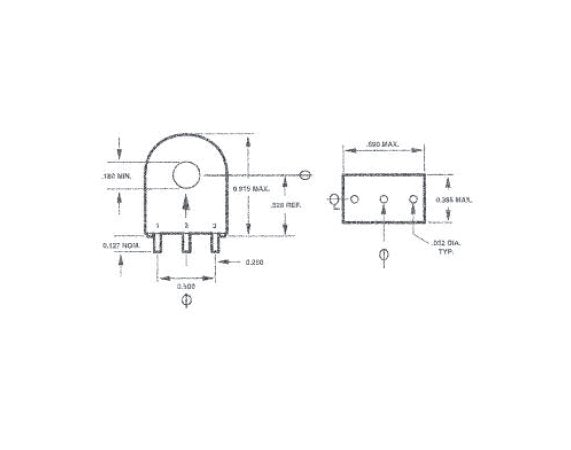

The CST206/CST306 Series High-Frequency Current Sense Transformers are expertly designed for precise current detection in switching power supply applications. These transformers offer exceptional reliability and optimal performance within a frequency range of 20 kHz to 200 kHz, constructed using UL-rated 130°C materials. With features like a center tap option and specifications including ET VµSEC REF 20 kHz of 1000, Turns Count of 100 Center Tap, Min. Inductance of 14.0 mH, and more, these transformers are ideal for applications requiring accurate current sensing.
Product Specifications
Specifications Et Vsec Ref 20 Khz
1000
Specifications Frequency
20 to 200 kHz
Specifications Max Dcr
1.550 Ohm
Specifications Min Inductance
14.0 mH
Specifications Overall Turn Ratio
100
Specifications Primary Rms Current
25.0 A
Specifications Transformer Contact Type
Center Tap
Specifications Turns Count
100 Center Tap
Specifications Ul Rated Material Temperature
130 ºC

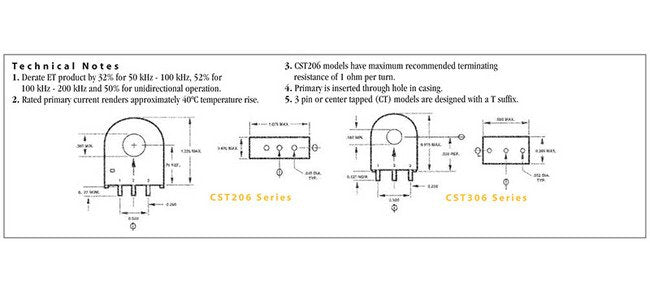

Technical Notes 0
Derate ET product by 32% for 50 kHz - 100 kHz, 52% for 100 kHz - 200 kHz and 50% for unidirectional operation. Rated primary current renders approximately 40 ºC temperature rise. CST206 models have maximum recommended terminating rise CST206 models have maximum recommended terminating resistance of 1 ohm per turn Primary is inserted through hole is casing 3 pin or center tapped (CT) models aree deisgned with a T suffix
