High frequency current sense transformers for precise current detection in power supply applications. UL rated 130 ºC materials, center tap option.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
High Frequency Current Sense Transformers - CST206/CST306 Series
$59.99
Quantity: 1
Claim Your Seller Account
High Frequency Current Sense Transformers - CST206/CST306 Series
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

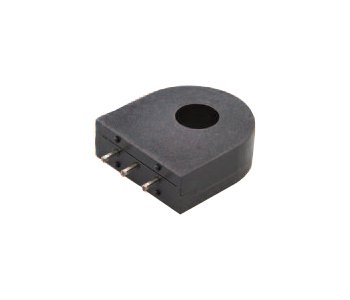

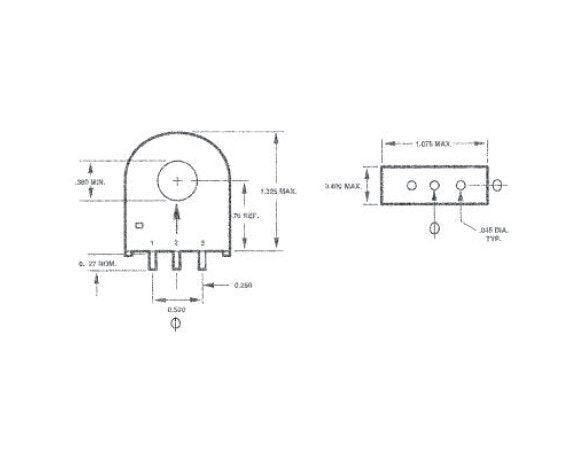

The CST206/CST306 Series High Frequency Current Sense Transformers are designed for superior performance in switching power supply applications. These transformers accurately detect current flow through conductors with high precision and reliability. Operating seamlessly within the frequency range of 20 kHz to 200 kHz, they are constructed from UL rated 130 ºC materials, ensuring durability and safety. Featuring a center tap option, these models offer optimal flexibility and ease of integration into various systems, making them ideal for both consumer and institutional applications.
Product Specifications
Specifications Et Vsec Ref 20 Khz
4000
Specifications Frequency
20 to 200 kHz
Specifications Max Dcr
3.500 Ohm
Specifications Min Inductance
56.0 mH
Specifications Overall Turn Ratio
200
Specifications Primary Rms Current
80.0 A
Specifications Transformer Contact Type
Center Tap
Specifications Turns Count
200 Center Tap
Specifications Ul Rated Material Temperature
130 ºC
Technical Notes 0

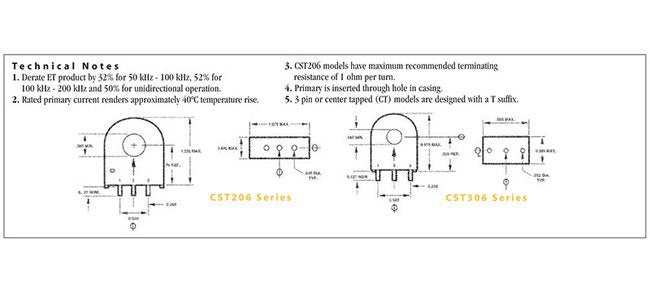

Derate ET product by 32% for 50 kHz - 100 kHz, 52% for 100 kHz - 200 kHz and 50% for unidirectional operation. Rated primary current renders approximately 40 ºC temperature rise. CST206 models have maximum recommended terminating rise CST206 models have maximum recommended terminating resistance of 1 ohm per turn Primary is inserted through hole is casing 3 pin or center tapped (CT) models aree deisgned with a T suffix
