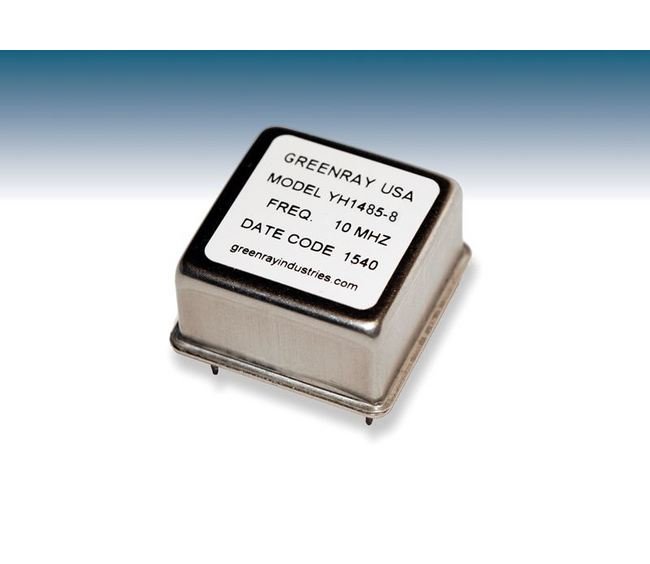

The High-Frequency OCXO Crystal Oscillator is a premium solution designed for applications requiring precise frequency control. With a frequency range of 100 - 250 MHz and excellent phase noise characteristics, this compact unit ensures reliable signal output. Featuring a Sinewave output at +3 dBm into 50 ohms, this oscillator excels in performance and reliability. Its comprehensive specifications meet the stringent requirements of institutional and government buyers, making it an ideal choice for critical operations.
Product Specifications
Environmental And Mechanical Specifications Shock
Per MIL-STD-202, Method 213, Condition C
Environmental And Mechanical Specifications Vibration
Per MIL-STD-202, Method 204, Condition A | Per MIL-STD-810, Method 514, Proc 1
Phase Noise Performance 100 Hertz Hz Frequency Offset
-110 dBc/Hz at 250 MHz | -120 dBc/Hz at 160 MHz
Phase Noise Performance 100 Kilohertz Khz Frequency Offset
-155 dBc/Hz at 250 MHz | -160 dBc/Hz at 160 MHz
Phase Noise Performance 10 Hertz Hz Frequency Offset
-80 dBc/Hz at 250 MHz | -90 dBc/Hz at 160 MHz
Phase Noise Performance 10 Kilohertz Khz Frequency Offset
-150 dBc/Hz at 250 MHz | -155 dBc/Hz at 160 MHz
Phase Noise Performance 1 Kilohertz Khz Frequency Offset
-135 dBc/Hz at 250 MHz | -145 dBc/Hz at 160 MHz
Phase Noise Performance Note For Phase Noise
Typical
Specifications Aging
±5 x 10-7 per year
Specifications Frequency Versus Supply
±5 x 10-9 for a 5% Change
Specifications G Sensitivity
â¤1 x 10-9/g for "S" package | â¤2.5 x 10-9/g for "LP"
Specifications Harmonics
-20 dBc
Specifications Input Direct Current Dc Voltage
+12 V | +15 V | ±5 V
Specifications Input Power
Idle - ⤠2.5 W Typical at +25 ºC | Turn-on - ⤠6 W for 5 minutes
Specifications Maximum Frequency
250 MHz
Specifications Minimum Frequency
100 MHz
Specifications Note For Frequency Adjustment
0 to +5.0 V EFC
Specifications Note For Symmetry
Squarewave Version
Specifications Ordering Example
YH1518-S37-12.0-LP-160.0 MHz(Model-Temperature Stability-Input V-Package-Frequency)
Specifications Output
+3 dBm minimum into 50 ohms | Sinewave

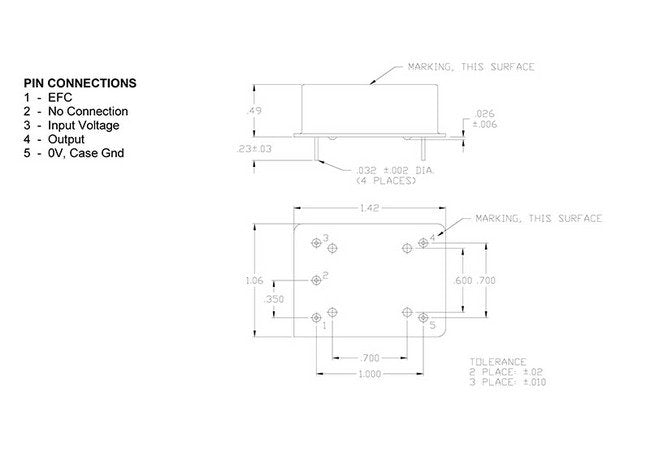

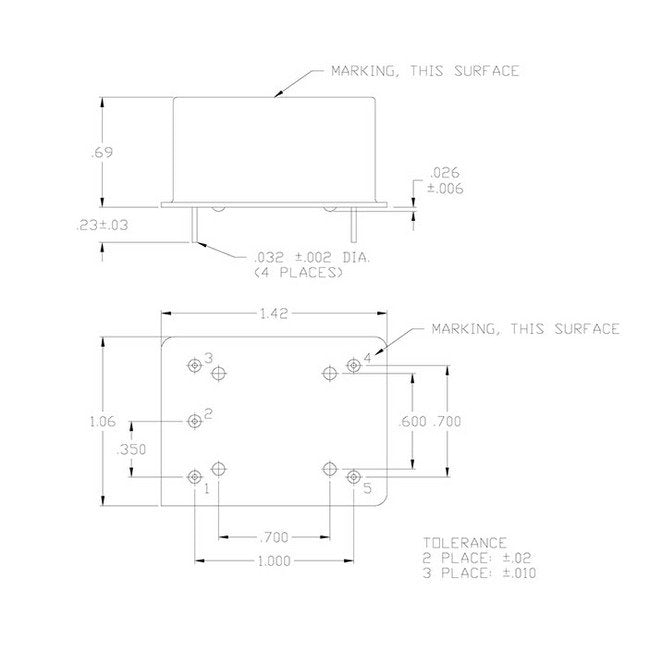

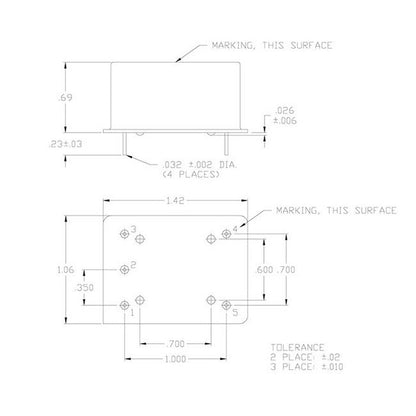

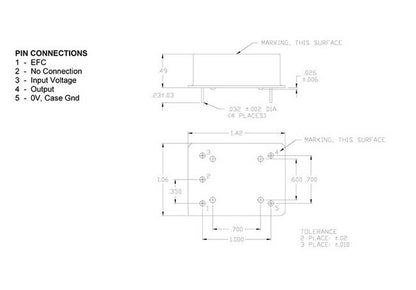

Specifications Pin Configuration
1 - EFC | 2 - No Connection | 3 - Input Voltage | 4 - Output | 5 - 0 V and Case Gnd
Specifications Positive Slope Frequency Adjust
±2.0 ppm
Specifications Subharmonics
-40
Specifications Symmetry
50 %
Specifications Symmetry Tolerance
±10 %
Specifications Tolerance For Input Direct Current Dc Voltage
±5 %
Specifications Warm Up Time
Within ± 1 x 10-7 in 4 minutes, ref to 60 minute frequency at +25 ºC
Temperature Stability Model N17
Stability ±1 x 10-7 | Temperature Range: -20 to +70 ºC
Temperature Stability Note For Temperature Stability
All stabilities may not be available at all frequencies or both package options.
Temperature Stability Option S27
Stability ±2 x 10-7 | Temperature Range: -40 to +70 ºC
Temperature Stability Option S37
Stability ±3 x 10-7 | Temperature Range: -40 to +70 ºC
