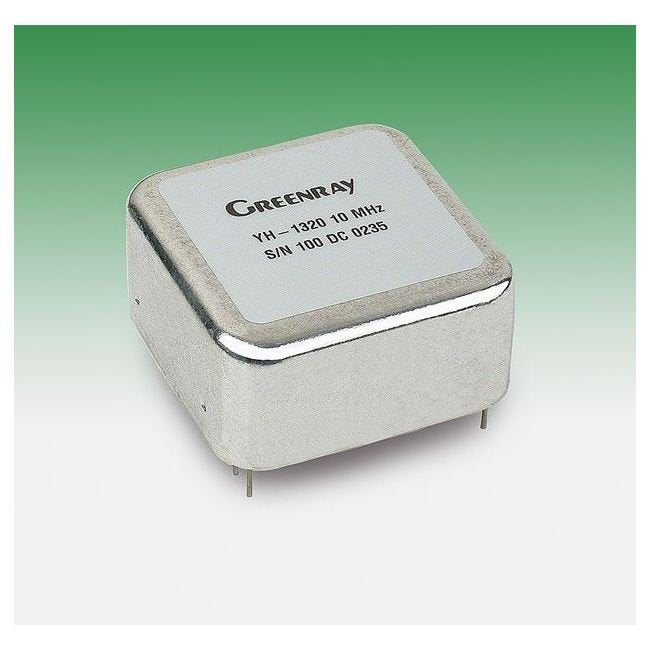

Introducing our OCXO High-Frequency Oven-Controlled Crystal Oscillator, the ideal solution for applications requiring precise frequency stability. With a frequency range of 10 to 120 MHz and tight stability control, this oscillator ensures low phase noise and reliable performance. Featuring harmonics suppression at -20 dBc, precise DC input voltage options, and exceptional temperature stability models, it meets the stringent requirements of government and institutional procurement standards. With superior phase noise performance and robust environmental specifications, this OCXO oscillator sets a new standard in frequency control technology.
Product Specifications
Environmental And Mechanical Specifications Shock
Per MIL-STD-202, Method 213, Condition C
Environmental And Mechanical Specifications Vibration
Per MIL-STD-202, Method 204, Condition A
Phase Noise Performance 100 Hertz Hz Frequency Offset
-115 dBc/Hz at 100 MHz Standard | -120 dBc/Hz at 100 MHz Ultra-Low | -150 dBc/Hz Standard | -155 dBc/Hz at 10 MHz Ultra-Low
Phase Noise Performance 100 Kilohertz Khz Frequency Offset
-165 dBc/Hz Standard | -168 dBc/Hz Ultra-Low
Phase Noise Performance 10 Hertz Hz Frequency Offset
-125 dBc/Hz Standard | -128 dBc/Hz Ultra-Low | -85 dBc/Hz at 100 MHz Standard | -90 dBc/Hz at 100 MHz Ultra-Low
Phase Noise Performance 10 Kilohertz Khz Frequency Offset
-160 dBc/Hz Standard | -165 dBc/Hz Standard | -165 dBc/Hz Ultra-Low | -168 dBc/Hz Ultra-Low
Phase Noise Performance 1 Kilohertz Khz Frequency Offset
-145 dBc/Hz Standard | -150 dBc/Hz at 100 MHz Ultra-Low | -160 dBc/Hz at 100 MHz Standard | -163 dBc/Hz Ultra-Low
Phase Noise Performance Note For Phase Noise
Sine Max
Specifications Aging For 1 Year At 100 Mhz
±5 x 10-7
Specifications Aging For 1 Year At 10 Mhz
±1 x 10-7
Specifications Direct Current Dc Input Voltage Option C
+15 V
Specifications Direct Current Dc Input Voltage Option D
+12 V
Specifications Frequency Versus Supply
±5 x 10-9 for a 5% Change
Specifications Harmonics
-20 dBc
Specifications Input Power
Idle - ⤠2.5 W Typical at +25 ºC | Turn-on - ⤠6 W for 5 minutes
Specifications Maximum Frequency
120 MHz
Specifications Minimum Frequency
10 MHz
Specifications Ordering Example
YH1322 - N28 - D - UL - 10.0 MHz(Model-Stability-Input V-Phase Noise Opt-Frequency)
Specifications Output
+10 dBm minimum into 50 ohms | Sinewave

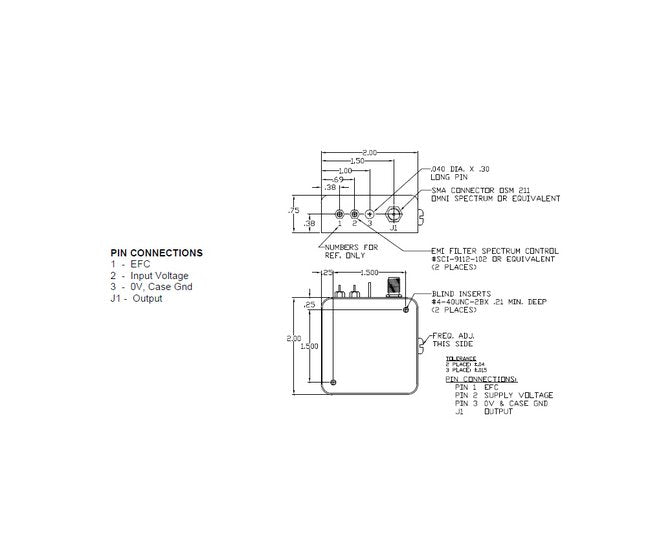

Specifications Pin Configuration
1 - EFC | 2 - Input Voltage | 3 - 0 V and Case Gnd | J1 - Output
Specifications Positive Slope Frequency Adjust
±1.0 ppm
Specifications Tolerance For Direct Current Dc Input Voltage Opt
5 %
Specifications Warm Up Time
Within ± 5 x 10-8 in 5 minutes, ref to 60 minute frequency at +25 ºC
Temperature Stability Model B18
10 MHz Tolerance: ±1 x 10-8 | Temperature Range: 0 to +50 ºC
Temperature Stability Model B58
100 MHz Tolerance: ±5 x 10-8 | Temperature Range: 0 to +50 ºC
Temperature Stability Model G158
10 MHz Tolerance: ±1.5 x 10-8 | Temperature Range: -10 to +60 ºC
Temperature Stability Model G78
100 MHz Tolerance: ±7 x 10-8 | Temperature Range: -10 to +60 ºC
Temperature Stability Model N17
100 MHz Tolerance: ±1 x 10-7 | Temperature Range: -20 to +70 ºC
Temperature Stability Model N28
10 MHz Tolerance: ±2 x 10-8 | Temperature Range: -20 to +70 ºC
Temperature Stability Model T37
100 MHz Tolerance: ±3 x 10-7 | Temperature Range: -40 to +85 ºC
Temperature Stability Model T58
10 MHz Tolerance: ±5 x 10-8 | Temperature Range: -40 to +85 ºC
