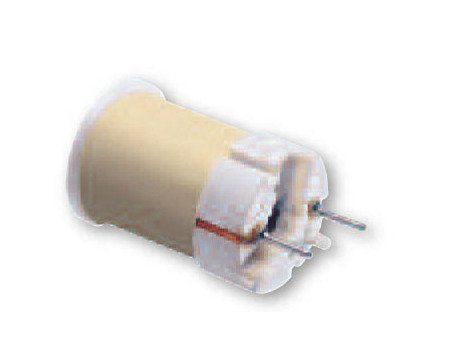

High-Frequency Rod Core Inductor
High-Frequency Rod Core Inductor
SKU:IND-0656f2
Enhance stability in high-frequency applications with the High-Frequency Rod Core Inductor by Triad. Optimal for automated PCB installation.
Regular price
$12.99
Regular price
Sale price
$12.99
Unit price
per
Initiate Order
High-Frequency Rod Core Inductor
$12.99
Quantity: 1
Claim Your Seller Account
High-Frequency Rod Core Inductor
$12.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The High-Frequency Rod Core Inductor from the Switch Mode series by Triad is a cost-effective energy storage solution designed for smoothing out current waveforms, ensuring stable currents in high-frequency applications. With a DC rated inductance of 3900 µH and a maximum current capacity of 0.320 A, this inductor is optimized for frequencies ranging from 20 to 200 kHz. Its compact dimensions and low weight make it ideal for automated PCB installations. Additionally, the inductor comes with a RC-KIT option that includes all necessary components for quick assembly.
Product Specifications
Note 0
A RC-KIT is available which includes one of each of the above listed components.
Specifications Dc Rated Inductance
3900 µH
Specifications Dc Resistance
3.900 Ohm

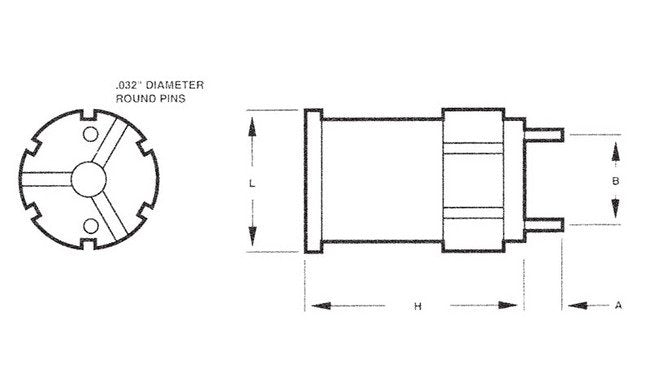

Specifications Dimension A
0.150 in
Specifications Dimension B
0.375 in
Specifications Dimension H
0.93 in
Specifications Dimension L
0.600 in
Specifications Max Current
0.320 A (DC)
Specifications Operating Frequency
20 to 200 kHz
Specifications Weight
0.030 lb
Technical Notes 0
Rated current 10 amps per pin maximum.Rated current renders approximately 40 ºC temperature rise.Inductance Tolerance +/-10%DC Resistance Tolerance +/-15%
