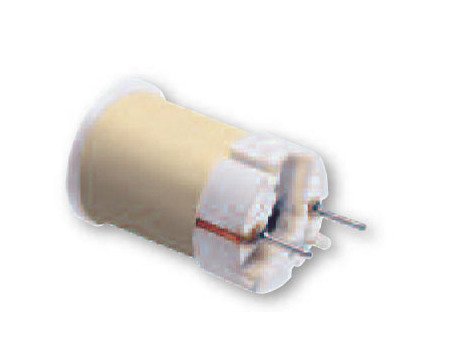

High Frequency Rod Core Inductor
High Frequency Rod Core Inductor
SKU:IND-f1b04e
Efficient High-Frequency Rod Core Inductor for stable current output in automated P.C.B. installations.
Regular price
$12.99
Regular price
Sale price
$12.99
Unit price
per
Initiate Order
High Frequency Rod Core Inductor
$12.99
Quantity: 1
Claim Your Seller Account
High Frequency Rod Core Inductor
$12.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

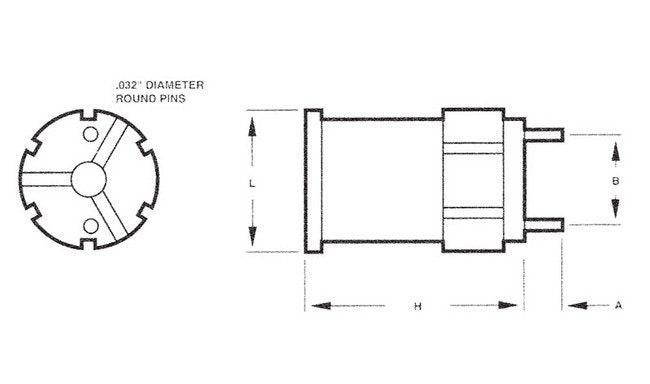

The High Frequency Rod Core Inductor from our Switch Mode series is a reliable and cost-effective energy storage solution designed to ensure stable current output. With a DC Rated Inductance of 450 µH and a Maximum Current of 1.000 A (DC), this inductor is ideal for high-frequency applications ranging from 20 to 200 kHz. Its compact dimensions (0.93" H x 0.600" L x 0.150" A x 0.375" B) and lightweight design make it compatible with automated P.C.B. installation processes. Additionally, the inductor comes with a tolerance of +/-10% on inductance and +/-15% on DC resistance, meeting industry standards for precision and reliability.
Product Specifications
Note 0
A RC-KIT is available which includes one of each of the above listed components.
Specifications Dc Rated Inductance
450 µH
Specifications Dc Resistance
0.420 Ohm
Specifications Dimension A
0.150 in
Specifications Dimension B
0.375 in
Specifications Dimension H
0.93 in
Specifications Dimension L
0.600 in
Specifications Max Current
1.000 A (DC)
Specifications Operating Frequency
20 to 200 kHz
Specifications Weight
0.030 lb
Technical Notes 0
Rated current 10 amps per pin maximum.Rated current renders approximately 40 ºC temperature rise.Inductance Tolerance +/-10%DC Resistance Tolerance +/-15%
