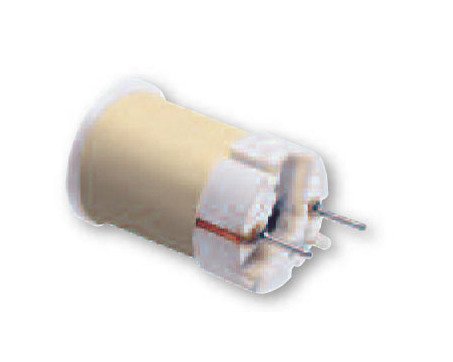

High Frequency Rod Core Inductor
High Frequency Rod Core Inductor
SKU:IND-3b0c99
Reliable energy storage with stable current waveform for precise control. Compatible with automated P.C.B. installation.
Regular price
$12.99
Regular price
Sale price
$12.99
Unit price
per
Initiate Order
High Frequency Rod Core Inductor
$12.99
Quantity: 1
Claim Your Seller Account
High Frequency Rod Core Inductor
$12.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Switch Mode/High Frequency Rod Core Inductors by Triad are engineered to provide reliable energy storage at a cost-effective price point. These inductors effectively condition output signals, ensuring a stable current waveform. With a DC Rated Inductance of 200 µH, Max. Current of 1.600 A (DC), and operating Frequency range of 20 to 200 kHz, these inductors are ideal for applications requiring precise current control. Designed for compatibility with automated P.C.B. installation, these inductors offer efficient performance in various settings.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Note 0
A RC-KIT is available which includes one of each of the above listed components.
Specifications Dc Rated Inductance
200 µH
Specifications Dc Resistance
0.180 Ohm

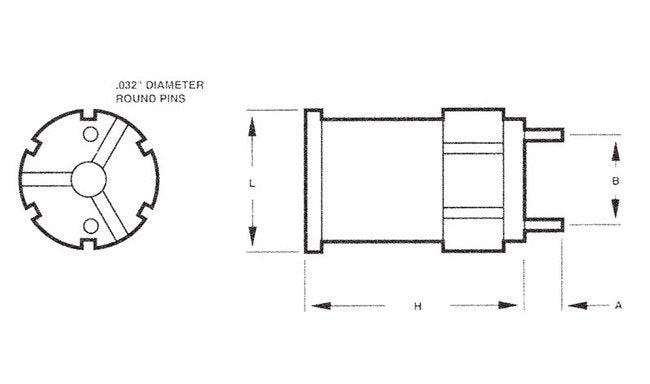

Specifications Dimension A
0.150 in
Specifications Dimension B
0.375 in
Specifications Dimension H
0.93 in
Specifications Dimension L
0.600 in
Specifications Max Current
1.600 A (DC)
Specifications Operating Frequency
20 to 200 kHz
Specifications Weight
0.030 lb
Technical Notes 0
Rated current 10 amps per pin maximum.Rated current renders approximately 40 ºC temperature rise.Inductance Tolerance +/-10%DC Resistance Tolerance +/-15%
