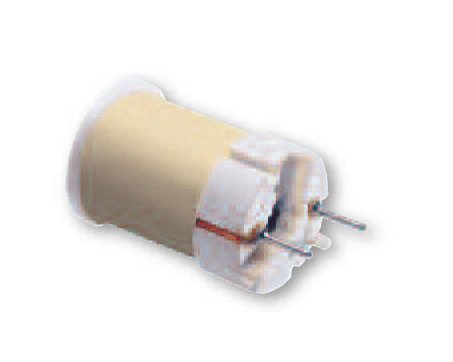

High Frequency Rod Core Inductor
High Frequency Rod Core Inductor
SKU:IND-367ec7
Efficiently store energy and ensure stable current with our High Frequency Rod Core Inductor. Ideal for automated PCB installation.
Regular price
$14.99
Regular price
Sale price
$14.99
Unit price
per
Initiate Order
High Frequency Rod Core Inductor
$14.99
Quantity: 1
Claim Your Seller Account
High Frequency Rod Core Inductor
$14.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The High Frequency Rod Core Inductor from our Switch Mode line is engineered for efficient energy storage and current waveform stabilization. With a DC Rated Inductance of 915 µH, Max. Current of 0.625 A (DC), and precise dimensions for seamless PCB compatibility, this inductor offers cost-effective performance. Rated to handle up to 10 amps per pin, with a maximum temperature rise ensuring longevity, it is an ideal choice for applications requiring stable current under 20 to 200 kHz frequencies.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Note 0
A RC-KIT is available which includes one of each of the above listed components.
Specifications Dc Rated Inductance
915 µH
Specifications Dc Resistance
1.000 Ohm

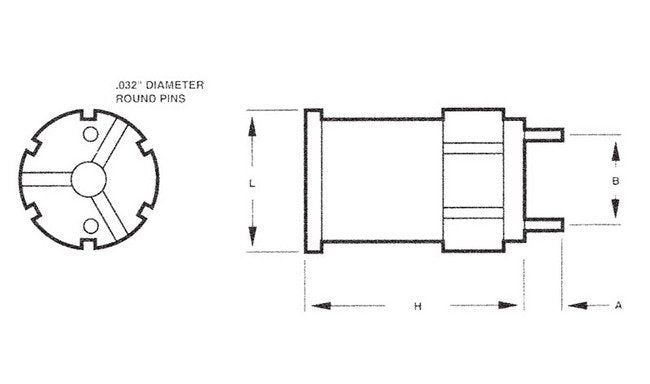

Specifications Dimension A
0.150 in
Specifications Dimension B
0.375 in
Specifications Dimension H
0.93 in
Specifications Dimension L
0.600 in
Specifications Max Current
0.625 A (DC)
Specifications Operating Frequency
20 to 200 kHz
Specifications Weight
0.030 lb
Technical Notes 0
Rated current 10 amps per pin maximum.Rated current renders approximately 40 ºC temperature rise.Inductance Tolerance +/-10%DC Resistance Tolerance +/-15%
