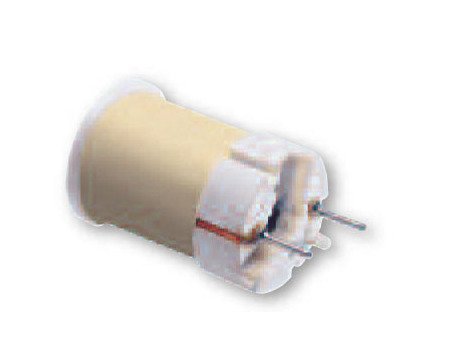

The Switch Mode/High Frequency Rod Core Inductor is a reliable solution for energy storage, designed to smoothen current waveforms effectively. With a DC Rated Inductance of 250 µH, Max. Current of 1.250 A (DC), and operating frequency range of 20 to 200 kHz, this inductor ensures stable and efficient performance. These inductors are cost-effective, compatible with automated P.C.B. installation, and come with a RC-KIT option for added convenience.
Product Specifications
Note 0
A RC-KIT is available which includes one of each of the above listed components.
Specifications Dc Rated Inductance
250 µH
Specifications Dc Resistance
0.210 Ohm

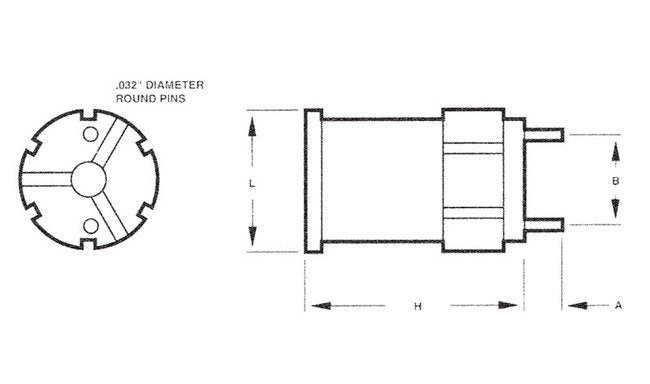

Specifications Dimension A
0.150 in
Specifications Dimension B
0.375 in
Specifications Dimension H
0.93 in
Specifications Dimension L
0.600 in
Specifications Max Current
1.250 A (DC)
Specifications Operating Frequency
20 to 200 kHz
Specifications Weight
0.030 lb
Technical Notes 0
Rated current 10 amps per pin maximum.Rated current renders approximately 40 ºC temperature rise.Inductance Tolerance +/-10%DC Resistance Tolerance +/-15%
