High Frequency Rod Core Inductor
High Frequency Rod Core Inductor
SKU:IND-174452
Enhance signal stability with our High Frequency Rod Core Inductor. Ideal for automated P.C.B. installation. DC Rated Inductance: 1500 µH.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
High Frequency Rod Core Inductor
$24.99
Quantity: 1
Claim Your Seller Account
High Frequency Rod Core Inductor
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

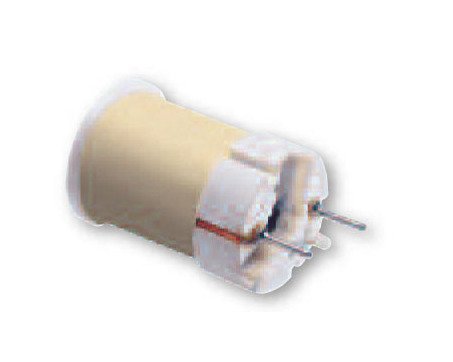

The High Frequency Rod Core Inductor from our Switch Mode series is a reliable energy storage solution ideal for ensuring signal stability. With a DC Rated Inductance of 1500 µH and a Max. Current of 0.500 A (DC), this inductor effectively smooths out current waveforms in the 20 to 200 kHz operating frequency range. Designed for easy automated P.C.B. installation, it offers low cost and high performance, making it a valuable choice for various applications.
Product Specifications
Note 0
A RC-KIT is available which includes one of each of the above listed components.
Specifications Dc Rated Inductance
1500 µH
Specifications Dc Resistance
1.530 Ohm

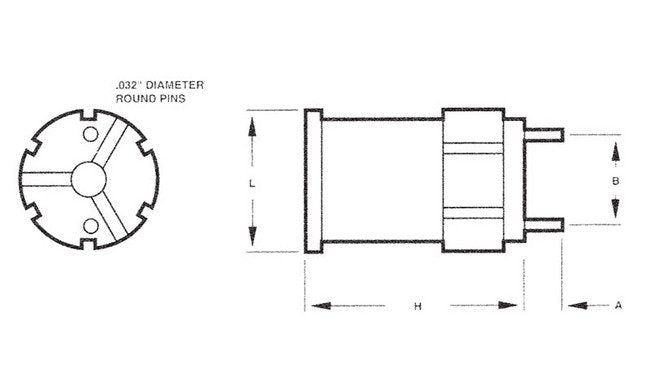

Specifications Dimension A
0.150 in
Specifications Dimension B
0.375 in
Specifications Dimension H
0.93 in
Specifications Dimension L
0.600 in
Specifications Max Current
0.500 A (DC)
Specifications Operating Frequency
20 to 200 kHz
Specifications Weight
0.030 lb
Technical Notes 0
Rated current 10 amps per pin maximum.Rated current renders approximately 40 ºC temperature rise.Inductance Tolerance +/-10%DC Resistance Tolerance +/-15%
