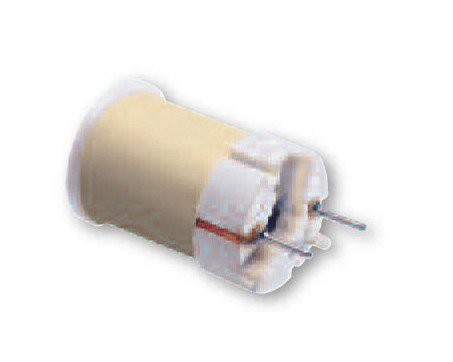

High Frequency Rod Core Inductor
High Frequency Rod Core Inductor
SKU:IND-61a84b
Reliable Switch Mode Rod Core Inductor for stable energy storage and efficient current waveform smoothing.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
High Frequency Rod Core Inductor
$29.99
Quantity: 1
Claim Your Seller Account
High Frequency Rod Core Inductor
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Switch Mode/High Frequency Rod Core Inductor is a reliable solution for energy storage in electronic circuits. With a DC Rated Inductance of 5600 µH and a Max. Current of 0.250 A (DC), this inductor effectively smoothes current waveforms, ensuring a stable output. Designed for compatibility with automated PCB installation, this cost-effective component enhances circuit efficiency and performance.
Product Specifications
Note 0
A RC-KIT is available which includes one of each of the above listed components.
Specifications Dc Rated Inductance
5600 µH
Specifications Dc Resistance
6.100 Ohm

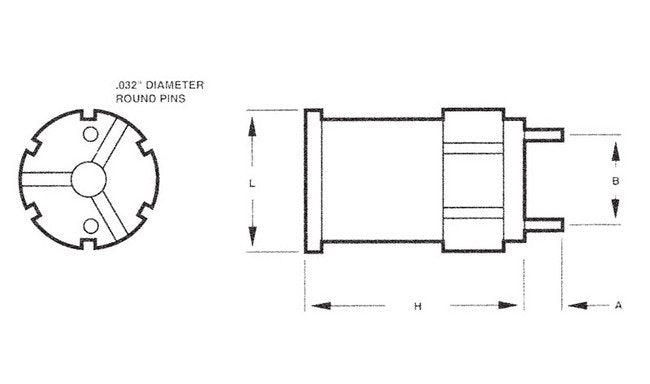

Specifications Dimension A
0.150 in
Specifications Dimension B
0.375 in
Specifications Dimension H
0.93 in
Specifications Dimension L
0.600 in
Specifications Max Current
0.250 A (DC)
Specifications Operating Frequency
20 to 200 kHz
Specifications Weight
0.030 lb
Technical Notes 0
Rated current 10 amps per pin maximum.Rated current renders approximately 40 ºC temperature rise.Inductance Tolerance +/-10%DC Resistance Tolerance +/-15%
