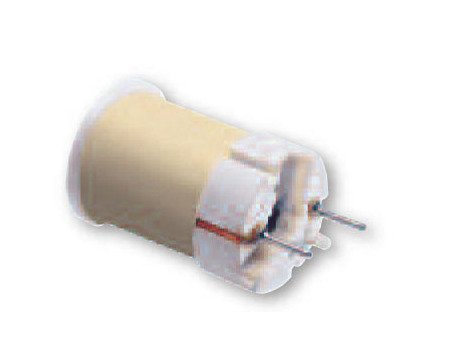

High Frequency Rod Core Inductor
High Frequency Rod Core Inductor
SKU:IND-09724f
Reliable High-Frequency Rod Core Inductor for stable currents & compact installations. Ideal for automated P.C.B. setups.
Regular price
$12.99
Regular price
Sale price
$12.99
Unit price
per
Initiate Order
High Frequency Rod Core Inductor
$12.99
Quantity: 1
Claim Your Seller Account
High Frequency Rod Core Inductor
$12.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

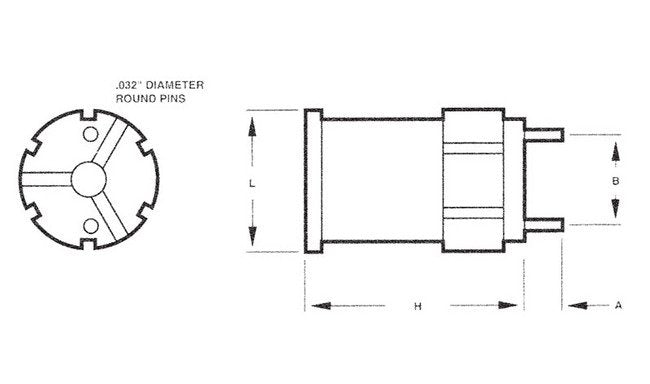

The High Frequency Rod Core Inductor from our Switch Mode series ensures reliable energy storage, smoothing output signals for stable currents. With a DC Rated Inductance of 100 µH and a Max. Current of 2.000 A (DC), this inductor is ideal for high-frequency operation (20 to 200 kHz). Its compact dimensions (H: 0.93 in, L: 0.600 in, A: 0.150 in, B: 0.375 in) and low weight of 0.030 lb make it suitable for automated P.C.B. installation. Rated for a maximum current of 10 amps per pin, this inductor maintains a temperature rise of approximately 40°C. Explore the RC-KIT option for added convenience.
Product Specifications
Note 0
A RC-KIT is available which includes one of each of the above listed components.
Specifications Dc Rated Inductance
100 µH
Specifications Dc Resistance
0.098 Ohm
Specifications Dimension A
0.150 in
Specifications Dimension B
0.375 in
Specifications Dimension H
0.93 in
Specifications Dimension L
0.600 in
Specifications Max Current
2.000 A (DC)
Specifications Operating Frequency
20 to 200 kHz
Specifications Weight
0.030 lb
Technical Notes 0
Rated current 10 amps per pin maximum.Rated current renders approximately 40 ºC temperature rise.Inductance Tolerance +/-10%DC Resistance Tolerance +/-15%
