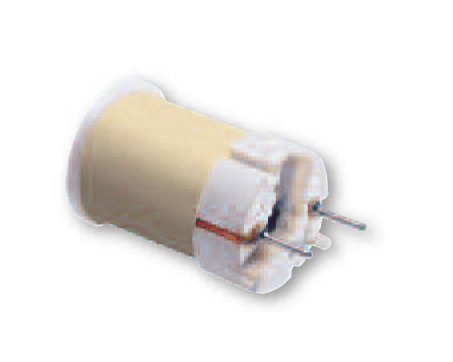

High-Frequency Rod Core Inductor
High-Frequency Rod Core Inductor
SKU:IND-aeaf92
Enhance circuit efficiency with our High-Frequency Rod Core Inductor, featuring 75 µH DC Rated Inductance and compatibility with automated P.C.B. installation.
Regular price
$12.99
Regular price
Sale price
$12.99
Unit price
per
Initiate Order
High-Frequency Rod Core Inductor
$12.99
Quantity: 1
Claim Your Seller Account
High-Frequency Rod Core Inductor
$12.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The High-Frequency Rod Core Inductor from our Switch Mode collection is a cost-effective solution for energy storage in electronic circuits. With a DC Rated Inductance of 75 µH and a Max. Current of 2.500 A (DC), this inductor ensures a stable current output by smoothing the current waveform. Designed for compatibility with automated P.C.B. installation, it offers reliable performance in the frequency range of 20 to 200 kHz. The inductor features a low DC Resistance of 0.070 Ohm and dimensions of 0.93in (H) x 0.600in (L) x 0.150in (A) x 0.375in (B), weighing just 0.030 lb. Enhance your circuit efficiency with this inductor.
Product Specifications
Note 0
A RC-KIT is available which includes one of each of the above listed components.
Specifications Dc Rated Inductance
75 µH
Specifications Dc Resistance
0.070 Ohm

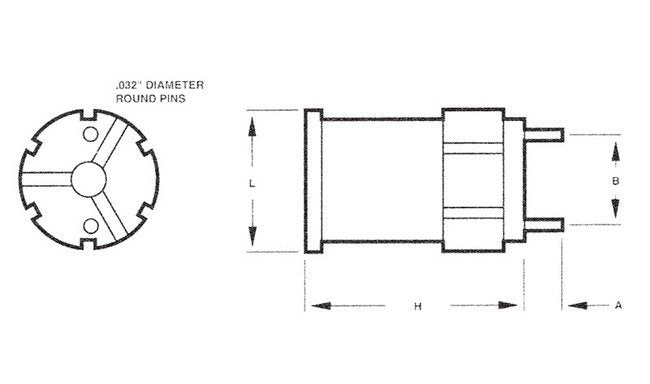

Specifications Dimension A
0.150 in
Specifications Dimension B
0.375 in
Specifications Dimension H
0.93 in
Specifications Dimension L
0.600 in
Specifications Max Current
2.500 A (DC)
Specifications Operating Frequency
20 to 200 kHz
Specifications Weight
0.030 lb
Technical Notes 0
Rated current 10 amps per pin maximum.Rated current renders approximately 40 ºC temperature rise.Inductance Tolerance +/-10%DC Resistance Tolerance +/-15%
