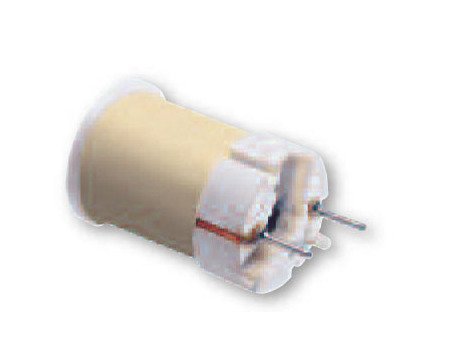

High-Frequency Rod Core Inductor

Name: High-Frequency Rod Core Inductor
Brand: Triad Magnetics
SKU: IND-43d9a7
Price: 24.99 USD
Availability: OutOfStock

SKU:IND-43d9a7

Enhance energy storage & stability with our high-current rod core inductor. Ideal for automated P.C.B. installation. DC Inductance: 2500 ÂµH, Max. Current: 0.400 A.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Experience efficient energy storage and output signal conditioning with our high-current rod core inductor. Smooth out current waveforms for enhanced stability and compatibility with automated P.C.B. installation. Rated at 2500 ÂµH DC Inductance and 0.400 A max current, this inductor ensures precision and reliability in operation.

Product Specifications

Note 0

A RC-KIT is available which includes one of each of the above listed components.

Specifications Dc Rated Inductance

2500 ÂµH

Specifications Dc Resistance

2.450 Ohm

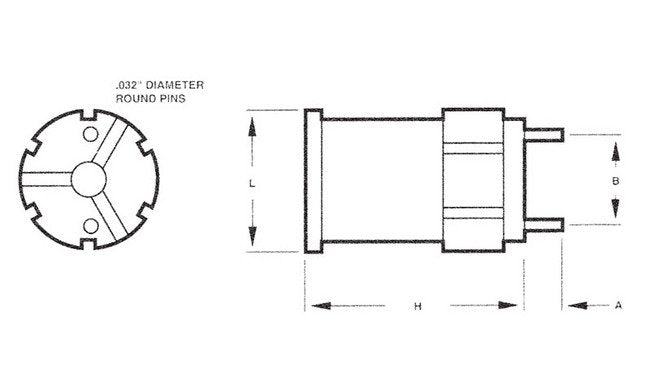

Specifications Dimension A

0.150 in

Specifications Dimension B

0.375 in

Specifications Dimension H

0.93 in

Specifications Dimension L

0.600 in

Specifications Max Current

0.400 A (DC)

Specifications Operating Frequency

20 to 200 kHz

Specifications Weight

0.030 lb

Technical Notes 0

Rated current 10 amps per pin maximum.Rated current renders approximately 40 ÂºC temperature rise.Inductance Tolerance +/-10%DC Resistance Tolerance +/-15%
