High Frequency Rod Core Inductor - Current Smoothing Energy Storage
High Frequency Rod Core Inductor - Current Smoothing Energy Storage
SKU:IND-b76500
Efficient High Frequency Rod Core Inductor for stable current waveforms and energy storage.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
High Frequency Rod Core Inductor - Current Smoothing Energy Storage
$24.99
Quantity: 1
Claim Your Seller Account
High Frequency Rod Core Inductor - Current Smoothing Energy Storage
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

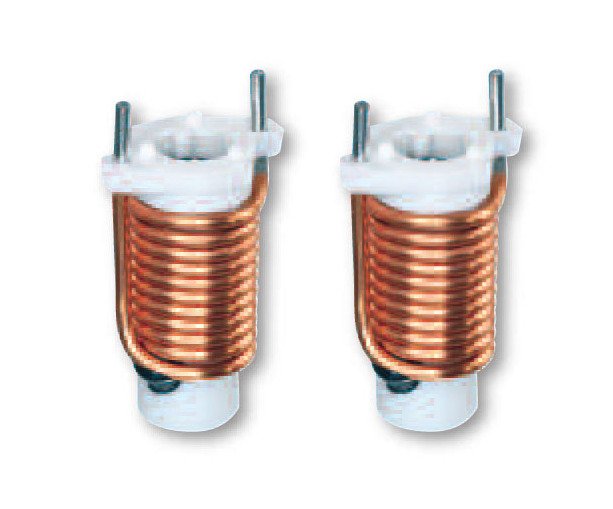

The High Frequency Rod Core Inductor by Triad offers efficient energy storage with current smoothing capabilities. Designed for stability, it enhances output signals by smoothing current waveforms, ensuring reliability in demanding applications. With a black dot color code, a DC rated inductance of 5.90 µH, and a maximum current of 5.70 A, this inductor is ideal for high-frequency operations ranging from 20 to 200 kHz. Its low DC resistance of 18.50 mOhm and PCB-compatible design make it suitable for automated installations. Additionally, the inductor's weighted construction ensures optimal performance and durability, meeting the stringent requirements of industrial and institutional settings.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Note 0
A FIRCH-KIT is available which includes one of each of the above listed components.
Specifications Color Code
Black Dot
Specifications Dc Rated Inductance
5.90 µH
Specifications Dc Resistance
18.50 mOhm

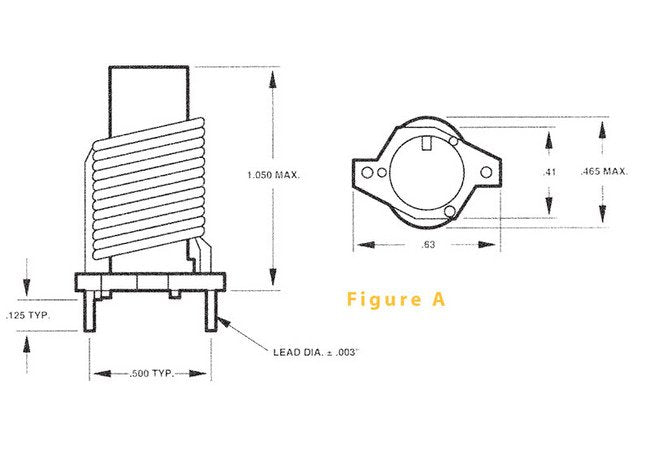

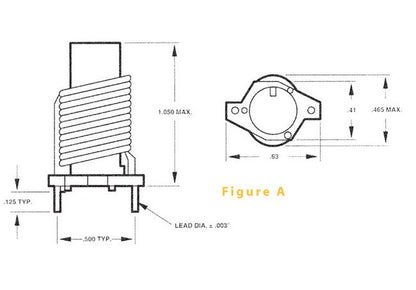

Specifications Lead Diameter
0.032 in
Specifications Max Current
5.70 A
Specifications Operating Frequency
20 to 200 kHz
Specifications Weight
0.030 lb
Technical Notes 0
Rated current 40 ºC temperature rise. Inductance Tolerance +/-15%
