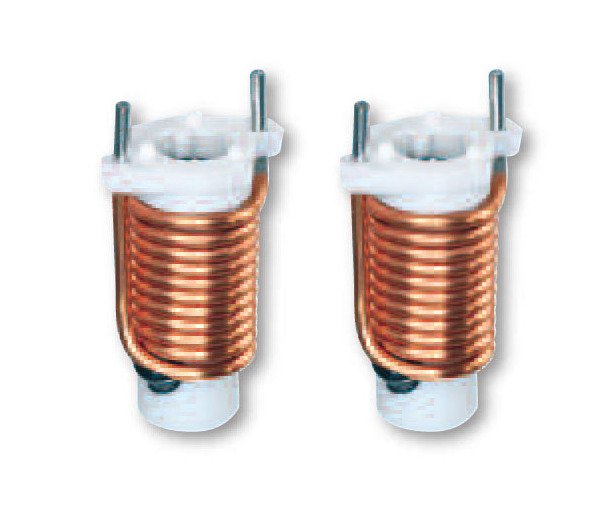

High Frequency Rod Core Inductor Kit
High Frequency Rod Core Inductor Kit
SKU:IND-c5cd47
Enhance energy management with the High Frequency Rod Core Inductor Kit featuring 5.00 µH DC Rated Inductance & 6.80 A Max. Current. Smoothes waveforms for stable current output.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
High Frequency Rod Core Inductor Kit
$29.99
Quantity: 1
Claim Your Seller Account
High Frequency Rod Core Inductor Kit
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The High Frequency Rod Core Inductor Kit is a premium solution for energy storage needs in demanding applications. With a DC Rated Inductance of 5.00 µH and a Max. Current of 6.80 A, this inductor ensures stable current output by smoothing out waveforms. Designed for compatibility with automated P.C.B. installation, it offers superior performance and reliability. The green dot color code and low DC Resistance of 14.10 mOhm make it ideal for high current applications, while operating efficiently in the frequency range of 20 to 200 kHz. Enhance your energy management system with this inductor kit that guarantees quality and cost-effectiveness. A FIRCH-KIT option is available for added convenience.
Product Specifications
Note 0
A FIRCH-KIT is available which includes one of each of the above listed components.
Specifications Color Code
Green Dot
Specifications Dc Rated Inductance
5.00 µH
Specifications Dc Resistance
14.10 mOhm
Specifications Lead Diameter
0.036 in
Specifications Max Current
6.80 A
Specifications Operating Frequency
20 to 200 kHz
Specifications Weight
0.030 lb
Technical Notes 0
Rated current 40 ºC temperature rise.Inductance Tolerance +/-15%
