High-Frequency Secondary Chassis Mount Power Transformers
High-Frequency Secondary Chassis Mount Power Transformers
SKU:POW-b8ad1e
High-Frequency Power Transformers with precise Secondary Voltages, ideal for reliable power distribution in various applications.
Regular price
$69.99
Regular price
Sale price
$69.99
Unit price
per
Initiate Order
High-Frequency Secondary Chassis Mount Power Transformers
$69.99
Quantity: 1
Claim Your Seller Account
High-Frequency Secondary Chassis Mount Power Transformers
$69.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

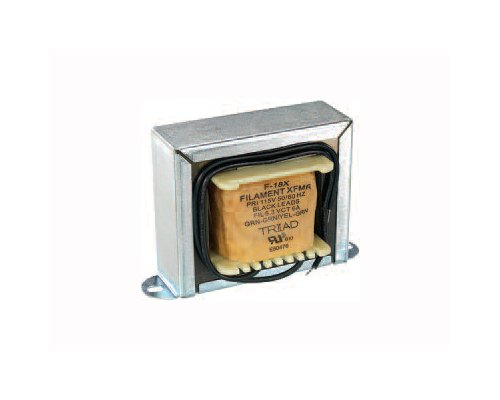

The High-Frequency Secondary Chassis Mount Power Transformers are designed for reliable power conversion in both consumer and institutional settings. With Secondary Voltages of 15.5V and 32.0V, Center Tap Transformer Contact Type, and Primary Voltage of 115V, these transformers ensure efficient power distribution. The transformers meet industry standards for Secondary Current, Primary Frequency, and Secondary RMS Test Voltage, making them ideal for a wide range of applications. Compact in size with secure mounting options, these transformers offer seamless integration into various systems.
Product Specifications
Specifications Case Type
X
Specifications Connections
Leads

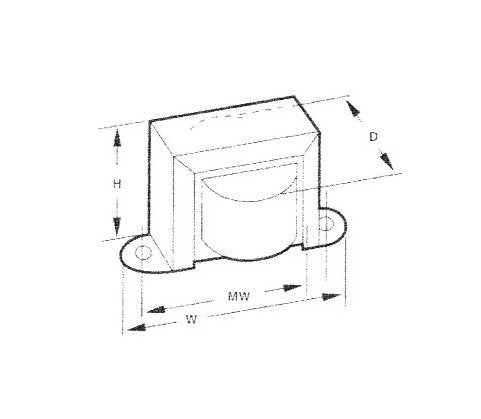

Specifications Depth D
1 7/8 in
Specifications Height H
2 1/4 in
Specifications Mounting Hole Size
3/16 in
Specifications Mounting Width
3 1/8 in
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V
Specifications Secondary Current
0.250 A for 32.0 V | 0.750 A for 15.5 V
Specifications Secondary Rms Test Voltage
1,500 V
Specifications Secondary Voltage
15.5 V | 32.0 V
Specifications Transformer Contact Type
Center Tap
Specifications Weight
1.30 lb
Specifications Width W
3 3/4 in
