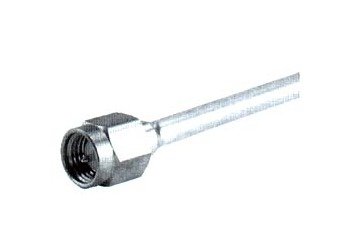

High-Frequency SMA Straight Cable Plugs (Male)
High-Frequency SMA Straight Cable Plugs (Male)
SKU:SMA-a1493d
Premium SMA straight cable plugs for high-frequency applications. Reliable performance up to 18 GHz.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
High-Frequency SMA Straight Cable Plugs (Male)
$39.99
Quantity: 1
Claim Your Seller Account
High-Frequency SMA Straight Cable Plugs (Male)
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your connectivity with our High-Frequency SMA Straight Cable Plugs. Designed for EZ 141 cables, these plugs boast a robust construction with beryllium copper contacts, suitable for high-frequency applications up to 18 GHz. With exceptional RF-leakage protection and compliant with stringent industry standards, these plugs ensure reliable performance and durability in demanding environments. Ideal for both consumer and institutional buyers.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Body Material
Beryllium copper, hardened
Specifications Cable Dielectic Dia Inches
.066/.117
Specifications Cable Group
Y5, Y12
Specifications Cable Type
semi-rigid
Specifications Configuration
pin and insulator
Specifications Connection
male
Specifications Connector Series
<2.5
Specifications Contact Captivation Lbs
SMA
Specifications Contact Resistance Centre Contact Ohms
<85/<125
Specifications Contact Resistance Outer Contact Ohms
<3
Specifications Corona Extinction Voltage V Rms
<335/<500
Specifications Crimp Ferrule Material
copper, brass
Specifications Dielectic Withstanding Voltage V Rms
1000/1500
Specifications Frequency Range Ghz
DC - 18
Specifications Impedence Ohms
50
Specifications Insulator Material
PTFE or PFA
Specifications Packaging
bulk 100 pcs.
Specifications Pin Contact Material
Beryllium copper, hardened
Specifications Plating Body
stainless steel
Specifications Rf Leakage Db
>100
Specifications Socket Contact Material
Beryllium copper, hardened
Specifications Temperature Range Degrees F
-85 to 329
Specifications Working Voltage 70000 Ft V Rmsrf Withstanding Vol
250/375
