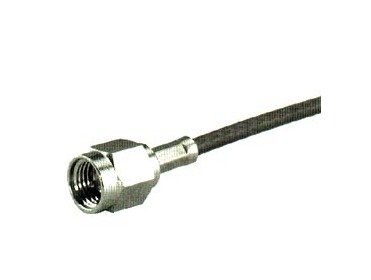

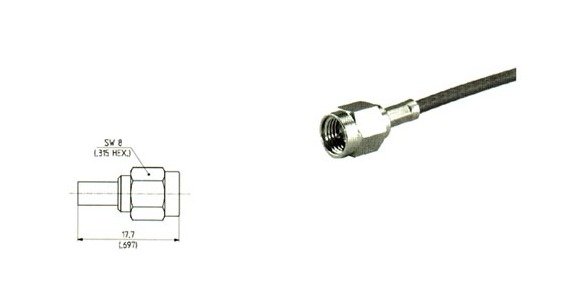

High-Frequency SMA Straight Cable Plugs (Male)
High-Frequency SMA Straight Cable Plugs (Male)
SKU:SMA-8efc51
Enhance connectivity with high-frequency SMA straight cable plugs for reliable performance in demanding environments.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
High-Frequency SMA Straight Cable Plugs (Male)
$89.99
Quantity: 1
Claim Your Seller Account
High-Frequency SMA Straight Cable Plugs (Male)
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Experience seamless connectivity with our High-Frequency SMA Straight Cable Plugs designed for precision and durability. These connectors feature a frequency range of DC - 18 GHz, ensuring reliable performance in demanding environments. Constructed with hardened beryllium copper and PTFE/PFA insulators, they offer exceptional temperature resistance (-85 to 329°F) and RF-leakage protection (>60 dB). Ideal for RG 178, 316, K02252D cables, these plugs guarantee outstanding impedance (50 ohms) and superior contact resistance for optimal signal transmission.
Product Specifications
Specifications Body Material
Beryllium copper, hardened
Specifications Cable Dielectic Dia Inches
.066/.117
Specifications Cable Group
U2
Specifications Cable Type
flexible
Specifications Configuration
straight
Specifications Connection
male
Specifications Connector Series
<2.5
Specifications Contact Captivation Lbs
SMA
Specifications Contact Resistance Centre Contact Ohms
<65/<85
Specifications Contact Resistance Outer Contact Ohms
<3
Specifications Corona Extinction Voltage V Rms
<250/<335
Specifications Crimp Ferrule Material
copper, brass
Specifications Dielectic Withstanding Voltage V Rms
750/1000
Specifications Frequency Range Ghz
DC - 18
Specifications Impedence Ohms
50
Specifications Insulator Material
PTFE or PFA
Specifications Packaging
bulk 100 pcs.
Specifications Pin Contact Material
Beryllium copper, hardened
Specifications Plating Body
SUCOPLATE
Specifications Rf Leakage Db
>60
Specifications Socket Contact Material
Beryllium copper, hardened
Specifications Temperature Range Degrees F
-85 to 329
Specifications Working Voltage 70000 Ft V Rmsrf Withstanding Vol
190/250
