High Head Pedestal Pump - Stainless Steel Fitted
High Head Pedestal Pump - Stainless Steel Fitted
SKU:PRO-4131ec
Reliable Stainless Steel Fitted High Head Pump by American Machine and Tool Co. for various applications.
Regular price
$799.99
Regular price
Sale price
$799.99
Unit price
per
Initiate Order
High Head Pedestal Pump - Stainless Steel Fitted
$799.99
Quantity: 1
Claim Your Seller Account
High Head Pedestal Pump - Stainless Steel Fitted
$799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

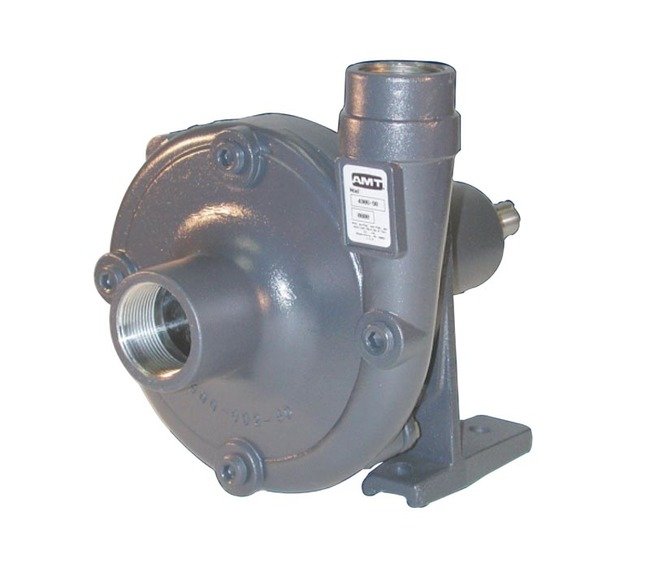

The Stainless Steel Fitted High Head Pedestal Pump by American Machine and Tool Company is a robust solution for water, wastewater, sump, and utility applications. Constructed with durable materials including Stainless Steel, this pump offers 118 GPM maximum flow and 148 ft maximum head. With self-cleaning impellers and Viton/Stainless Steel shaft seal construction, it ensures reliable performance. The epoxy-coated pedestal drive enhances longevity, making it suitable for high-pressure environments. Ideal for institutional use, this pump meets stringent industry standards for quality and efficiency.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications 0
Stainless Steel Fitted Cast Iron, Cast Bronze or 300 Series Investment Cast Stainless Steel Construction3/4" to 1-1/2" NPT Suction Ports1/2" to 1-1/4" NPT Discharge PortsMaximum Working PressureGeneral Service - 75 PSIHigh Head - 150 PSISelf-cleaning Impellers on General Service ModelsMaximum TemperatureBuna-N - 180ºFViton® - 200ºFMaximum Flow 118 GPMMaximum Head 148 ft.Discharge Port Rotates in 90º Increments on High Head UnitsEpoxy Coated Pedestal Drive on High Head Models
Specifications Curve
D
Specifications Customs Code
HTS Code 8413702022
Specifications Height
6 in | 142.24 mm
Specifications Inlet Size
1 in
Specifications Installed Options
Silicon Carbide / Viton Seal Installed (489X-300-VS) | Silicon Carbide / Viton Seal Installed (490X-300-VS)
Specifications Length
7 in | 170.18 mm
Specifications Manufacturer
American Machine and Tool Company
Specifications Max Flow Rate
118 gpm
Specifications Max Working Pressure High Head
150 psi
Specifications Moc
Bronze
Specifications Model
3704-97
Specifications Motor Rpm
4000 rpm
Specifications Porting Position
3/4 in
Specifications Power
1 hp
Specifications Shaft Seal Construction
Viton/Stainless Steel
Specifications Sku
AT370497SP
Specifications Temperature
200 ºF
Specifications Type
Pedestal Pump
Specifications Weight
11 | 4.99 | 11 lbs
Specifications Width
6 in | 162.56 mm
