High Head Stainless Steel Centrifugal Pedestal Pump
High Head Stainless Steel Centrifugal Pedestal Pump
SKU:PRO-00827b
Reliable High Head Stainless Steel Centrifugal Pump for industrial and institutional water pumping needs.
Regular price
$1,699.99
Regular price
Sale price
$1,699.99
Unit price
per
Initiate Order
High Head Stainless Steel Centrifugal Pedestal Pump
$1,699.99
Quantity: 1
Claim Your Seller Account
High Head Stainless Steel Centrifugal Pedestal Pump
$1,699.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

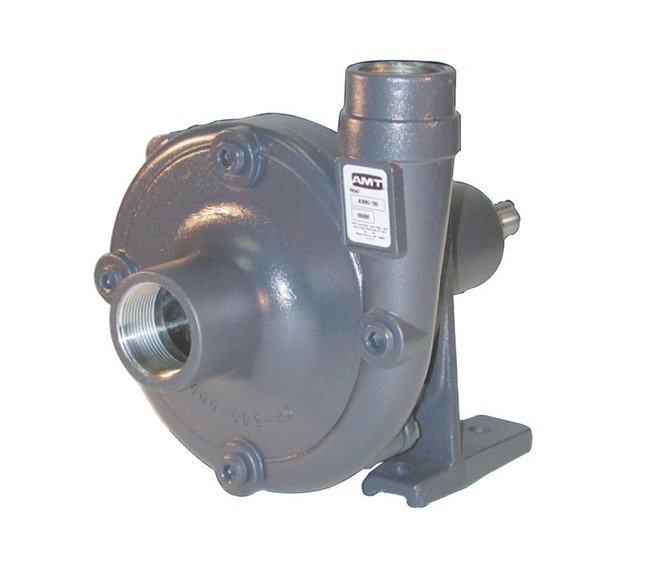

The High Head Stainless Steel Centrifugal Pedestal Pump by American Machine and Tool Company is a robust and efficient solution designed for demanding water pumping applications. Constructed with stainless steel fitted cast iron and Viton seals, this pump ensures longevity and reliability even in high-pressure environments up to 150 PSI. With self-cleaning impellers and a maximum flow rate of 118 GPM, it offers superior performance for general service and high head applications. The versatile design, rotating discharge port, and epoxy-coated pedestal drive make it ideal for various industrial and institutional settings.
Product Specifications
Specifications 0
Stainless Steel Fitted Cast Iron, Cast Bronze or 300 Series Investment Cast Stainless Steel Construction3/4" to 1-1/2" NPT Suction Ports1/2" to 1-1/4" NPT Discharge PortsMaximum Working PressureGeneral Service - 75 PSIHigh Head - 150 PSISelf-cleaning Impellers on General Service ModelsMaximum TemperatureBuna-N - 180ºFViton® - 200ºFMaximum Flow 118 GPMMaximum Head 148 ft.Discharge Port Rotates in 90º Increments on High Head UnitsEpoxy Coated Pedestal Drive on High Head Models
Specifications Curve
C
Specifications Customs Code
HTS Code 8413702022
Specifications Height
6 in | 144.78 mm
Specifications Inlet Size
1 1/4 in
Specifications Installed Options
Silicon Carbide / Viton Seal Installed (489X-300-VS) | Silicon Carbide / Viton Seal Installed (490X-300-VS)
Specifications Length
7 in | 170.18 mm
Specifications Manufacturer
American Machine and Tool Company
Specifications Max Flow Rate
118 gpm
Specifications Max Working Pressure High Head
150 psi
Specifications Moc
Stainless Steel
Specifications Model
3694-98
Specifications Motor Rpm
4000 rpm
Specifications Porting Position
1 in
Specifications Power
2 hp
Specifications Shaft Seal Construction
Viton/Stainless Steel
Specifications Sku
AT369498SP
Specifications Temperature
200 ºF
Specifications Type
Pedestal Pump
Specifications Weight
12 | 5.44 | 12 lbs
Specifications Width
6 in | 162.56 mm
