High Head Stainless Steel Straight Centrifugal Pedestal Pump
High Head Stainless Steel Straight Centrifugal Pedestal Pump
SKU:PRO-19bb3a
Reliable High Head Stainless Steel Pump for demanding applications. Boosts water systems effectively. Contact for availability.
Regular price
$699.99
Regular price
Sale price
$699.99
Unit price
per
Initiate Order
High Head Stainless Steel Straight Centrifugal Pedestal Pump
$699.99
Quantity: 1
Claim Your Seller Account
High Head Stainless Steel Straight Centrifugal Pedestal Pump
$699.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

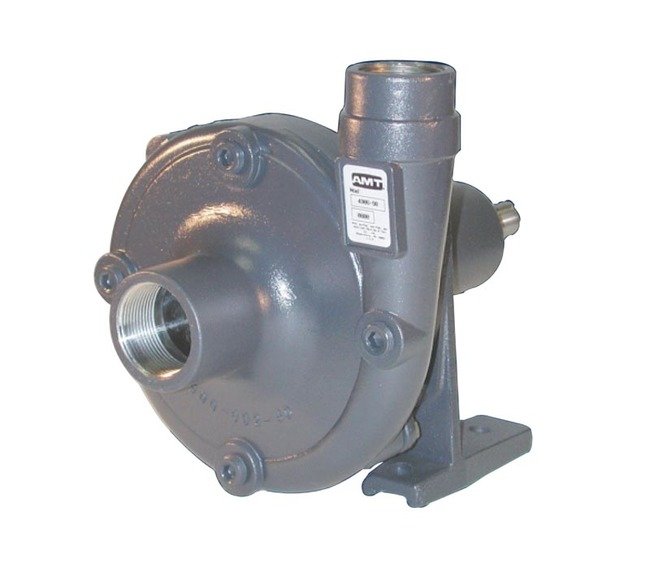

The High Head Stainless Steel Straight Centrifugal Pedestal Pump is expertly crafted by American Machine and Tool Company to deliver exceptional performance in demanding environments. Constructed with Stainless Steel Fitted Cast Iron, this pump offers durability and corrosion resistance. With a maximum flow rate of 118 GPM and a maximum head of 148 ft, it is ideal for high-pressure applications. The self-cleaning impellers and epoxy-coated pedestal drive ensure reliable operation. This pump is a reliable solution for boosting water systems in both commercial and industrial settings.
Product Specifications
Specifications 0

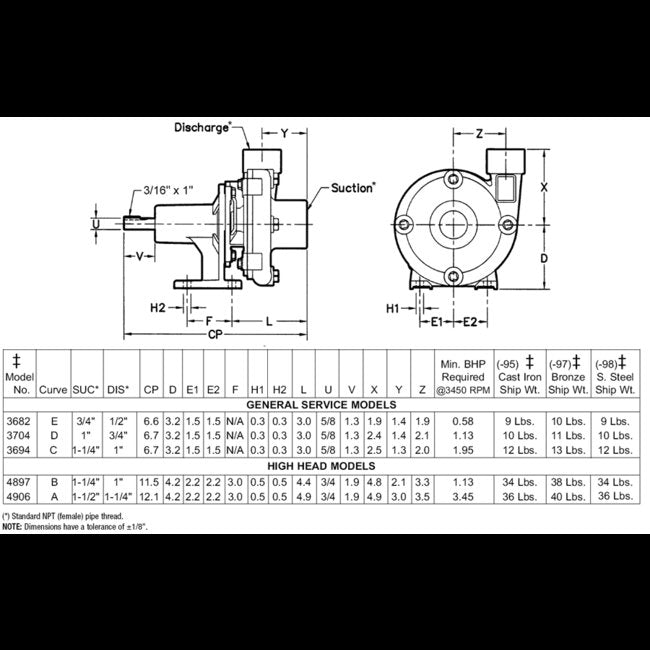

Stainless Steel Fitted Cast Iron, Cast Bronze or 300 Series Investment Cast Stainless Steel Construction3/4" to 1-1/2" NPT Suction Ports1/2" to 1-1/4" NPT Discharge PortsMaximum Working PressureGeneral Service - 75 PSIHigh Head - 150 PSISelf-cleaning Impellers on General Service ModelsMaximum TemperatureBuna-N - 180ºFViton® - 200ºFMaximum Flow 118 GPMMaximum Head 148 ft.Discharge Port Rotates in 90º Increments on High Head UnitsEpoxy Coated Pedestal Drive on High Head Models
Specifications Curve
E
Specifications Customs Code
HTS Code 8413702022
Specifications Height
5 in | 129.54 mm
Specifications Inlet Size
3/4 in
Specifications Installed Options
Silicon Carbide / Viton Seal Installed (489X-301-VS) | Silicon Carbide / Viton Seal Installed (490X-301-VS)
Specifications Length
7 in | 167.64 mm
Specifications Manufacturer
American Machine and Tool Company
Specifications Max Flow Rate
118 gpm
Specifications Max Working Pressure High Head
150 psi
Specifications Moc
Cast Iron
Specifications Model
3682-95
Specifications Motor Rpm
4000 rpm
Specifications Porting Position
1/2 in
Specifications Power
1/2 hp
Specifications Shaft Seal Construction
Buna/Stainless Steel
Specifications Sku
AT368295SP
Specifications Temperature
180 ºF
Specifications Type
Pedestal Pump
Specifications Weight
4.08 | 9 | 9 lbs
Specifications Width
6 in | 144.78 mm
